Omron E3Z-FDN13 2M: NPN diffuse-reflective sensor, 500 mm range, 850 nm infrared LED, IP67.

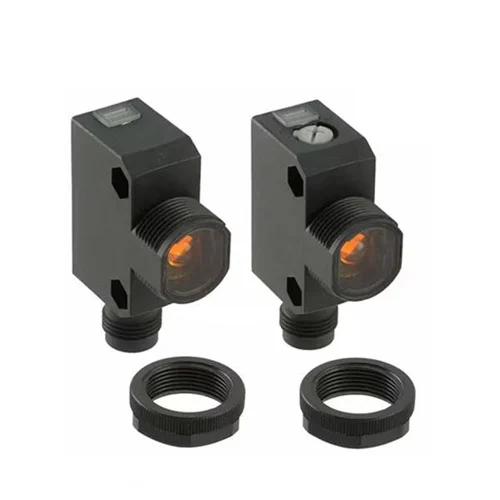

The Omron E3Z-FDN13 2M is an M18 nose-mount photoelectric sensor with diffuse-reflective sensing. It is rated for 500 mm on a 300 × 300 mm white-paper target and uses an 850 nm infrared LED. This NPN pre-wired model has a 2 m cable, 10–30 V DC supply and IP67/IP69K protection.
Omron E3Z-FDN13 2M: NPN diffuse-reflective sensor, 500 mm range, 850 nm infrared LED, IP67.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | M18 diffuse-reflective photoelectric sensor |
| Sensing method | Diffuse-reflective |
| Sensing distance | 500 mm (white paper, 300 × 300 mm) |
| Output | NPN open collector; 100 mA max. |
| Light source | Infrared LED, 850 nm |
| Power supply | 10–30 V DC |
| Current consumption | 25 mA max. |
| Response time | 0.5 ms max. |
| Operation mode | Light-ON / Dark-ON, cable-selectable |
| Connection | Pre-wired, 2 m PVC cable |
| Protection | IEC IP67; IP69K for pre-wired models |
| Operating temperature | −25 to 55°C |
| Operating humidity | 35–85% RH |
| Housing | Plastic, M18 nose-mount |
| Physical Weight (kg) | 0.055 (sensor only; approximately 55 g) |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked manufacturer source. |
Engineering suggestions require suitability checks for your installation.
Detect packages at the rated 500 mm range on a conveyor or machine station.
Confirm target color, surface and background against the white-paper reference and adjust sensitivity during commissioning.
Check for a part at an M18-mounted sensing point in packaging or assembly equipment.
Use the selectable output mode and validate sensing margin with the actual target and background.
