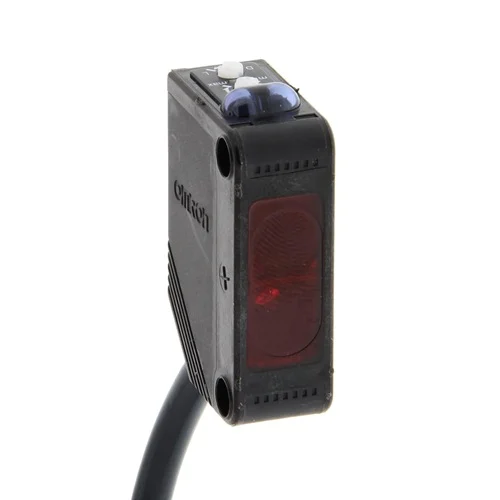

Omron E3Z-D61K 2M is an NPN diffuse-reflective oil-resistant sensor with 5–100 mm range, 860 nm infrared LED, IP67 and 2 m cable.
The Omron E3Z-D61K is an oil-resistant diffuse-reflective photoelectric sensor with NPN output. Omron specifies a 5–100 mm wide-view sensing range, 860 nm infrared LED, 1 ms maximum response, IP67 protection (excluding cables and connectors), and a 2 m pre-wired cable. Current supply status is not established by the consulted manufacturer specification and is recorded as Unknown.
An NPN oil-resistant diffuse sensor with 5–100 mm wide-view range, 860 nm infrared LED and IP67 rating.
| Parameter | Value |
|---|---|
| Sensing method | Diffuse-reflective, oil-resistant model |
| Sensing distance | 5–100 mm (wide view) |
| Standard sensing object | Not stated in the consulted specification |
| Output | NPN open collector |
| Light source | Infrared LED, 860 nm |
| Power supply | 12–24 VDC ±10%; ripple 10% max. |
| Control output | Load supply 26.4 VDC max.; load current 100 mA max. |
| Response time | Operate/reset: 1 ms max. |
| Operating / storage temperature | −25 to 55 °C / −40 to 70 °C, no icing or condensation |
| Ambient humidity | Operating 35–85% RH; storage 35–95% RH |
| Protection | IP67 (IEC), excluding cables and connectors; oil-resistant model |
| Connection | Pre-wired cable, 2 m |
| Weight | Approx. 65 g packed (0.065 kg) |
| Physical Weight (kg) | Approx. 0.065 kg packed state |
| Dimensions L x W x H (cm) | Not stated in consulted manufacturer data |
| Supply status | Unknown; current manufacturer lifecycle state not established |
Engineering suggestions require suitability checks for your installation.
Machine components and workpieces may be detected in areas exposed to oil mist or splashing.
The oil-resistant model diffuse sensing can be evaluated for close-range presence detection; confirm the target surface and cable exposure against site conditions.
A fixture may require confirmation that a part is present at a fixed station.
Use the 860 nm diffuse sensor with compatible NPN input logic after validating detection stability on the actual part and mounting distance.
