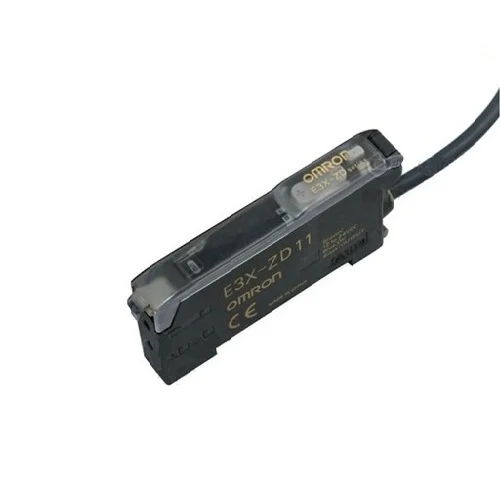

Omron E3X-ZD11 2M Simple Fiber Amplifier Unit with NPN open collector, red LED fiber sensing and a 2 m prewired connection.
The E3X-ZD11 2M is a simple fiber amplifier unit from Omron's E3X-ZD family. It amplifies an optical fiber sensor signal and provides a NPN open collector control output. This prewired model has a 2 m cable and uses a red LED light source. Select a compatible Omron fiber unit and set the sensing threshold for the target and installation conditions.
Omron E3X-ZD fiber amplifier with NPN open collector output and 2 m prewired cable.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3X-ZD |
| Product type | Simple Fiber Amplifier Unit |
| Output | NPN open collector |
| Connection | Prewired cable, 2 m |
| Rated supply voltage | 12 to 24 VDC |
| Light source | Red AlGaInP LED, 620 nm |
| Response time | 200 μs max. operate/reset |
| Degree of protection | IP50 with protective cover |
| Supply status | Unknown; exact model specifications confirmed from Omron data, current supply status not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Use a compatible fiber unit to detect small parts or targets in a constrained machine space.
Select an Omron fiber unit with sensing geometry appropriate to the target and distance.
Convert fiber-unit optical signals into a discrete control output for machine logic.
Use the NPN open collector signal with compatible input wiring and choose Light-ON or Dark-ON operation for the control logic.
