Omron E3X-NA14V is an NPN fiber amplifier: 12–24 VDC, 200 μs max. operate/reset and IP66 with protective cover attached enclosure rating.

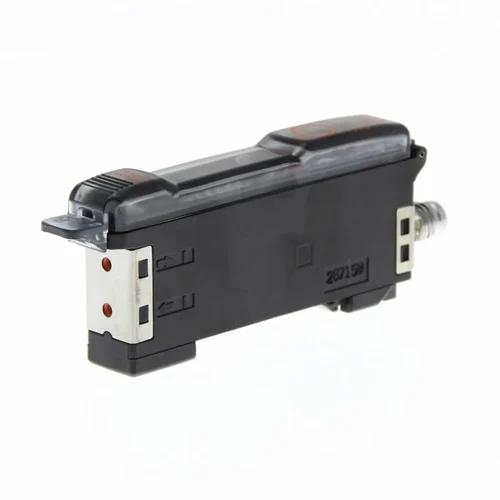

The Omron E3X-NA14V is an E3X-NA bar-display fiber amplifier with NPN open-collector output and water-resistant M8-connector configuration. It uses a red led, 680 nm, a 12–24 VDC supply and an 8-turn sensitivity adjuster; the response is 200 μs max. operate/reset. A compatible E32 fiber unit is required and is not included with this amplifier. Current supply status is not established by consulted manufacturer material and is recorded as Unknown.
A NPN water-resistant M8-connector for use with a compatible Omron fiber unit.
| Parameter | Value |
|---|---|
| Product type | Fiber-optic amplifier unit; fiber unit sold separately |
| Series / model | E3X-NA water-resistant M8-connector |
| Light source | Red LED, 680 nm |
| Power supply | 12–24 VDC ±10%; 10% p-p ripple max. |
| Power / current consumption | 840 mW max. at 24 VDC; 420 mW max. at 12 VDC; 35 mA max. |
| Output | NPN Open collector; 50 mA max.; 26.4 V max. load; 1 V max. residual; Light-ON/Dark-ON selector |
| Response time | 200 μs max. operate/reset |
| Sensitivity adjustment | 8-turn sensitivity adjuster with indicator |
| Timer | No timer or OFF-delay; 40 ms fixed setting |
| Ambient temperature | −25 to +55 °C (1–3 units); −25 to +50 °C (4–11); −25 to +45 °C (12–16); storage −30 to +70 °C |
| Ambient humidity | Operating 35–85% RH; water-resistant model storage 35–95% RH; no condensation |
| Protection rating | IP66 with protective cover attached |
| Connection | M8 connector; sensor I/O cable sold separately |
| Housing material | PBT case; cover material varies by model family |
| Physical Weight (kg) | Approx. 0.065 kg packed |
| Dimensions L x W x H (cm) | See Omron dimension drawing; numeric dimensions not transcribed |
| Supply status | Unknown; current manufacturer supply state not established |
