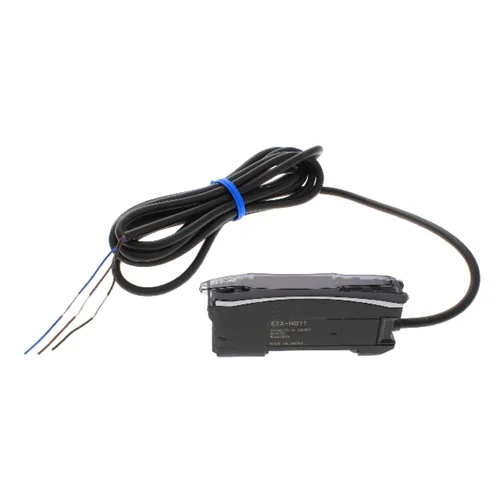

Omron E3X-HD11-V1 2M smart fiber amplifier with NPN open-collector output, 12 to 24 VDC supply and 2 m prewired cable.
The E3X-HD11-V1 2M is listed in the queue as a prewired smart fiber amplifier. Omron E3X-HD series data identifies the HD11 configuration as an NPN output model with a 2 m prewired cable. It uses a red 625 nm LED and accepts a 12 to 24 VDC supply. Pair the amplifier with a compatible Omron E32 fiber unit and configure the threshold and operating mode for the target.
Smart fiber amplifier with NPN open-collector output and 2 m prewired cable.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3X-HD |
| Product type | Smart fiber amplifier unit |
| Output | NPN open collector |
| Connection | Prewired cable, 2 m |
| Rated supply voltage | 12 to 24 VDC ±10% |
| Light source | Red 4-element LED, 625 nm |
| Response time | 50 μs SHS; 250 μs HS; 1 ms standard; 16 ms GIGA |
| Degree of protection | IP50 with protective cover |
| Supply status | Unknown; current manufacturer supply status was not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Use a compatible fiber unit to detect a part where the sensing head must fit a tight space.
Select the fiber head to suit the target size and sensing geometry, then set the threshold using Smart Tuning.
Convert fiber-unit light levels to a discrete control signal for machine logic.
Use the NPN output with a compatible input circuit and choose the required Light-ON or Dark-ON behavior.
