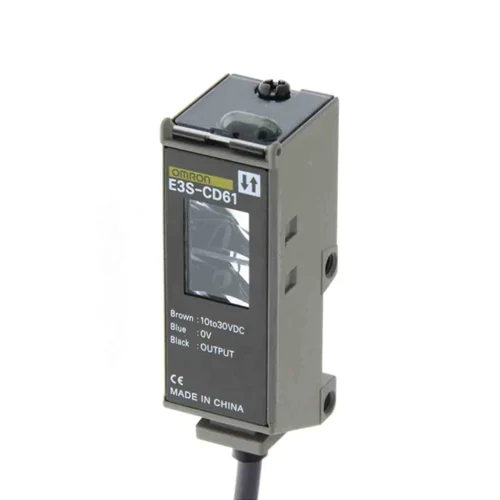

Omron E3S-CD61 2M: diffuse-reflective sensor, 700 mm range, 850 nm infrared, IP67 metal housing.
The Omron E3S-CD61 2M is a vertical, metal-case E3S-C photoelectric sensor using diffuse-reflective sensing. Its rated range is 700 mm against the specified 300 × 300 mm white-paper target. The 850 nm infrared model provides selectable NPN/PNP output and Light-ON/Dark-ON operation, with IP67 oil-resistant protection.
Omron E3S-CD61 2M: diffuse-reflective sensor, 700 mm range, 850 nm infrared, IP67 metal housing.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Oil-resistant photoelectric sensor with metal housing |
| Orientation | Vertical |
| Sensing method | Diffuse-reflective |
| Sensing distance | 700 mm (white paper 300 × 300 mm) |
| Light source | Infrared LED, 850 nm |
| Power supply | 10–30 V DC |
| Current consumption | 40 mA max. |
| Output | NPN/PNP open collector, selectable; 100 mA max. |
| Operation mode | Light-ON / Dark-ON selectable |
| Response time | 1 ms max. |
| Connection | 2 m pre-wired cable |
| Protection | IEC IP67; oil-resistant; NEMA 6P for indoor use |
| Housing | Zinc die-cast metal |
| Operating temperature | −25 to 55°C |
| Operating humidity | 35–85% RH |
| Physical Weight (kg) | 0.150 (approx. 150 g packed) |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked manufacturer source. |
Engineering suggestions require suitability checks for your installation.
Detect packages or components on a conveyor where oil exposure is possible.
Confirm target reflectance and the rated range with the installed target, and select the output mode for the controller input.
Check presence at a metal-bodied sensor station in factory equipment.
Set sensitivity and Light-ON/Dark-ON behavior for the target and background in the actual installation.
