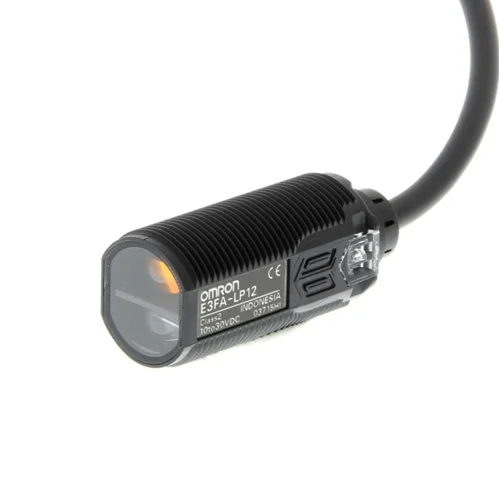

Omron E3FA-LP12 2M is a pre-wired PNP background-suppression sensor with 200 mm red-light range, 0.5 ms response and IP67/IP69K.
The Omron E3FA-LP12 is a straight-type E3FA plastic-housing photoelectric sensor with PNP open-collector output and a 2 m pre-wired cable. It uses background-suppression sensing at 200 mm with a 624 nm red LED and a 300 × 300 mm white paper reference target; response is 0.5 ms, with Light-ON/Dark-ON selectable by wiring and IP67/IP69K protection. Current supply status is not established by the consulted manufacturer material and is recorded as Unknown.
A PNP red-light background-suppression sensor with a 200 mm rated sensing range.
| Parameter | Value |
|---|---|
| Sensor type | Background-Suppression photoelectric sensor |
| Sensing distance | 200 mm (300 × 300 mm white paper) |
| Reference spot size | 10 × 15 mm at 200 mm |
| Light source | Red LED, 624 nm |
| Output | PNP open collector; Light-ON/Dark-ON selectable by wiring |
| Power supply | 10–30 VDC; ripple 10% p-p max. |
| Current consumption | 25 mA max. |
| Control output | 30 VDC max. load supply; 100 mA max. load current; 3 V max. residual voltage |
| Response time | 0.5 ms |
| Sensitivity adjustment | One-turn adjuster |
| Operating / storage temperature | −25 to +55 °C / −40 to +70 °C; no icing or condensation |
| Ambient humidity | Operating 35–85% RH; storage 35–95% RH; no condensation |
| Protection | IP67 (IEC); IP69K (DIN 40050-9) |
| Housing material | ABS case; PMMA lens/display; POM adjuster/nuts |
| Connection | Pre-wired cable, 2 m |
| Physical Weight (kg) | Approx. 0.050 kg sensor only |
| Dimensions L x W x H (cm) | Not stated numerically in consulted specifications |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A conveyor may need to detect passing products while limiting response to objects behind the sensing point.
Evaluate the 200 mm background-suppression range with the actual object and background geometry; verify the switching boundary and output logic during commissioning.
A fixture may need a compact sensor to confirm a part at a repeatable position.
Use the pre-wired E3FA sensor after checking target material, working distance, alignment and PNP input compatibility.
