USD 15.19
4-meter rectangular reflector for Omron photoelectric sensors. Features IP67 protection, M.S.R. functionality, and a rugged ABS base for industrial automation and AGV targeting.

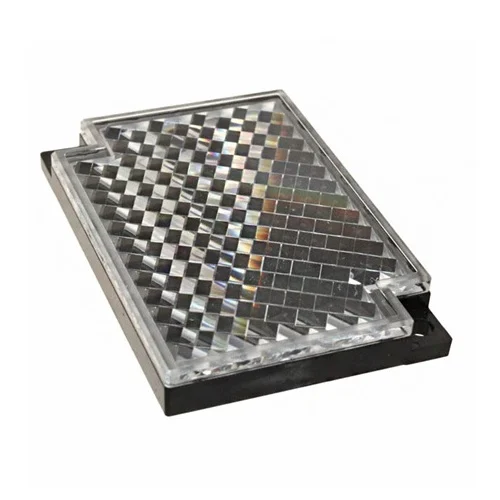

The Omron E39-R1S is a rectangular, hard-plastic passive reflector designed for use with retro-reflective photoelectric sensors like the E3Z and E3FA series. It features an ABS base with a highly reflective acrylic surface, capable of supporting sensing distances up to 4 meters. Engineered for demanding industrial environments, it offers an IP67 protection rating and is compatible with Mirror Surface Rejection (M.S.R.) functionality to prevent false triggering from shiny objects.
| Parameter | Value |
|---|---|
| Shape | Rectangular[1.2] |
| Dimensions | 40.3 mm x 59.9 mm x 7.5 mm |
| Base Material | ABS |
| Surface Material | Acrylic |
| Mounting Type | Surface screw-mounting (diagonal holes), M3 x 2 |
| IP Rating | IP67 |
| Directional Angle | 30 Degrees Minimum |
| Ambient Operating Temperature | -25 to 55 Degrees Celsius |
| Ambient Storage Temperature | -40 to 70 Degrees Celsius |
| Maximum Sensing Distance | Up to 4m (sensor dependent) |
| M.S.R. Compatibility | Yes |
Mounted opposite retro-reflective sensors on packaging lines to detect the passage of cardboard boxes or wrapped pallets [2.9].
MSR (Mirror Surface Rejection) compatibility prevents shiny packaging materials from falsely triggering the sensor, ensuring precise object counting and sorting.
Integrated into bottling or food processing equipment requiring frequent cleaning, working alongside IP67 rated photoelectric sensors.
The IP67 rated ABS and acrylic construction prevents water ingress or performance degradation during low-pressure chemical washdowns and humid conditions.
Positioned on structural columns or safety gates in automated warehouses to act as a target for AGV optical sensors.
Provides a reliable return signal up to 4 meters away with a wide 30-degree directional angle, compensating for slight misalignment or vibrations in dynamic environments.
