Omron E32-ZD22R 2M is a φ3 mm reflective fiber head with 2 m flexible R1 cable and amplifier-dependent sensing up to 70 mm.
The Omron E32-ZD22R 2M is a compact reflective fiber unit with a 3 mm cylindrical head and flexible R1 fiber. Omron's E3X-ZD2 catalog identifies the exact model as a small-size, flexible-fiber head and lists amplifier-dependent reflective distances of 70 mm, 40 mm and 15 mm across the catalog's precision, standard and super-high-speed modes. The catalog specifies a 2 m fiber unit; final detection depends on target reflectance and amplifier settings. The exact specifications are manufacturer-documented, but current supply status was not established.

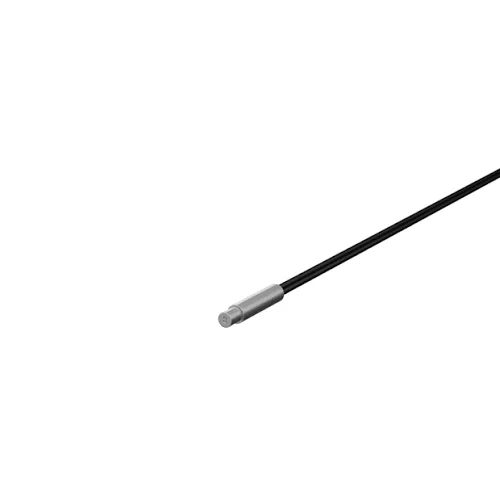

Compact φ3 mm reflective fiber head with flexible R1 cable and 2 m length.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Diffuse reflective |
| Head style | Small cylindrical head, 3 mm diameter |
| Cable length | 2 m |
| Fiber type | Flexible R1 fiber |
| Sensing distance | With Omron E3X-ZD2 catalog modes: 70 mm / 40 mm / 15 mm; mode and target dependent |
| Compatible amplifier | Omron E3X-ZD family; verify actual distance with target and selected mode |
| Physical Weight (kg) | Not stated in the checked manufacturer catalog. |
| Dimensions L x W x H (cm) | See manufacturer dimensional drawing; no overall L × W × H figure stated. |
| Supply status | Unknown; exact manufacturer specifications confirmed, current supply status not established. |
Engineering suggestions require suitability checks for your installation.
A small reflective head can fit near compact parts where an ordinary sensor body would obstruct the fixture.
Aim the head at the target and tune a compatible amplifier for its surface, size and background conditions.
Flexible optical fiber can route around machine features while the amplifier is mounted remotely.
Keep the cable within the R1 bend specification and validate range under actual motion, contamination and target conditions.
