Ultra-compact rectangular inductive proximity sensor with a 2.5mm sensing distance and PNP Normally Open output. Features a high 1 kHz switching frequency, IP67 rating, and a 1m pre-wired cable.

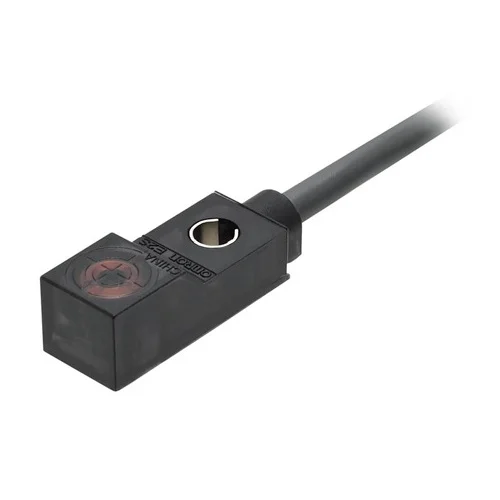

The Omron E2S-W25 1M is an ultra-compact inductive proximity sensor engineered for high-speed industrial automation. Housed in a durable polyarylate resin rectangular block (8mm x 7.4mm x 20mm), it features top/side-view sensing with a maximum detection distance of 2.5 mm. It utilizes a DC 3-wire circuit with a PNP open collector and Normally Open (NO) operating mode. Operating reliably on a 10 to 30 VDC supply, it offers an exceptionally fast 1 kHz response frequency, making it ideal for tracking rapidly moving metallic components. Equipped with a pre-wired 1-meter cable and boasting an IP67 rating, it is built to withstand harsh, constrained environments.
| Parameter | Value |
|---|---|
| Sensor Type | Inductive Proximity |
| Sensing Distance | 2.5 mm ±15% |
| Output Configuration | PNP, Normally Open (NO) |
| Wiring Type | DC 3-Wire |
| Supply Voltage | 10 to 30 VDC |
| Switching Frequency | 1 kHz max |
| Current Consumption | 13 mA max |
| Load Current | 50 mA max |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 8 mm x 7.4 mm x 20 mm |
| Housing Material | Polyarylate Resin |
| Connection | Pre-wired, 1m cable |
Detects metal gear teeth or actuator positions in a highly compact, fast-moving packaging line where standard cylindrical sensors cannot fit.
Overcomes extreme spatial constraints while providing the rapid cycle detection (1 kHz) required in high-speed manufacturing lines.
Verifies the presence of a metal component in a robotic gripper without adding excess weight or bulk to the dynamic robotic arm.
Provides reliable, lightweight, and durable (IP67) metal presence detection on moving robotic effectors.
Monitors the physical limit and home position of metal guide rails in a very constrained linear transfer stage envelope.
Delivers precise positioning feedback in miniature confined spaces requiring top/side-view detection capabilities and standard PNP logic integration.
