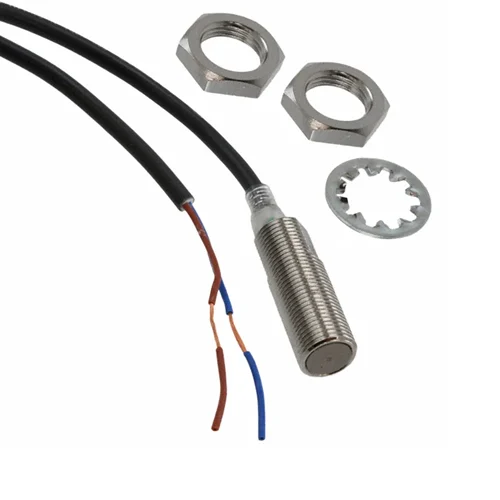

Omron E2E-X3D1-N 5M shielded M12 inductive sensor with 3 mm sensing distance, normally open DC two-wire output and 5 m cable.
The Omron E2E-X3D1-N 5M is a shielded M12 inductive proximity sensor with a 3 mm nominal sensing distance and a 5 m pre-wired cable. Its normally open DC two-wire output operates from 12 to 24 VDC and has a 1 kHz response frequency. Omron's lineup specifies the 2 m base model and confirms that a 5 m cable version is offered; the cited material does not state current supply status.
Shielded M12 inductive sensor with 3 mm sensing distance, two-wire DC NO output and 5 m pre-wired cable.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Shielded M12 cylindrical body; 47 mm body length |
| Sensing distance | 3 mm ±10% |
| Setting distance | 0 to 2.4 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 12 × 12 × 1 mm |
| Response frequency | 1 kHz |
| Output | DC two-wire, normally open; 3 to 100 mA load current |
| Power supply | 12 to 24 VDC (including 10% peak-to-peak ripple), Class 2 |
| Leakage current | 0.8 mA max. |
| Connection method | Pre-wired 5 m PVC cable |
| Operating temperature | −25 to 70 °C |
| Storage temperature | −40 to 85 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67; IP67G and IP69K qualifications listed for pre-wired models |
| Housing materials | Nickel-plated brass case; PBT sensing surface; PVC cable |
| Physical Weight (kg) | Not separately stated for the 5 m cable variant; 2 m standard-body model is approx. 0.070 kg packed |
| Dimensions L x W x H (cm) | 4.7 x 1.2 x 1.2 (47 mm body length; nominal M12 diameter) |
Engineering suggestions require suitability checks for your installation.
A machine station may need to detect a steel component at a close sensing range with the sensor mounted near moving tooling.
The shielded 3 mm inductive sensor can detect suitable ferrous targets in constrained locations; validate target size, sensing margin and nearby-metal effects.
An equipment layout may place the sensing point several metres from the control enclosure.
The 5 m pre-wired cable can reach a more distant connection point while the two-wire normally open output provides a discrete signal to a compatible circuit.
