USD 68.19

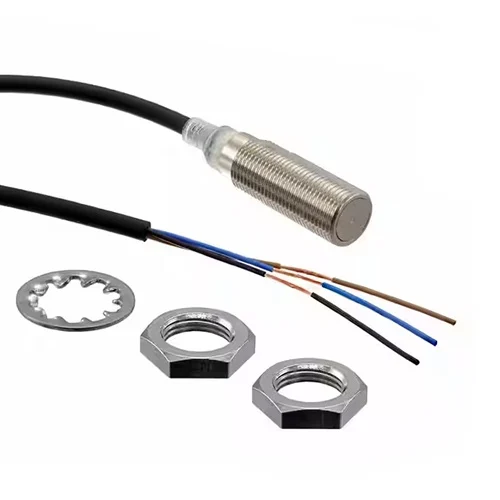

Omron E2E-X2E2-Z 2M: shielded M12 proximity sensor, NPN NC, cable.
The Omron E2E-X2E2-Z 2M is an E2E shielded inductive proximity sensor with M12 cylindrical body and 2 mm sensing distance. This model provides a NPN three-wire DC output in NC operation and connects by cable. Omron specifies a 10–30 VDC supply, IP67 protection, nickel-plated brass housing and PBT sensing surface. Use the exact switching logic and installation clearances required by the control system.
Shielded Omron E2E M12 inductive sensor with 2 mm range, NPN NC output and cable.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2E |
| Product type | Shielded inductive proximity sensor |
| Sensing method | Inductive |
| Sensing distance | 2 mm |
| Mounting | Shielded / flush |
| Output | NPN DC three-wire |
| Operation mode | NC |
| Connection | cable |
| Standard cable length | 2 m |
| Thread size | M12 |
| Housing material | Nickel-plated brass |
| Sensing surface | PBT |
| Rated supply voltage | 10 to 30 VDC |
| Degree of protection | IP67 |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect a ferrous component at a machine station before the next automated operation.
Mount the shielded sensor at its rated 2 mm distance and use the NPN NC signal with a compatible input.
Provide a non-contact switching point for a machine fixture or metal target.
Use the cable and verify that the target material and installation clearances meet Omron's E2E specifications.
