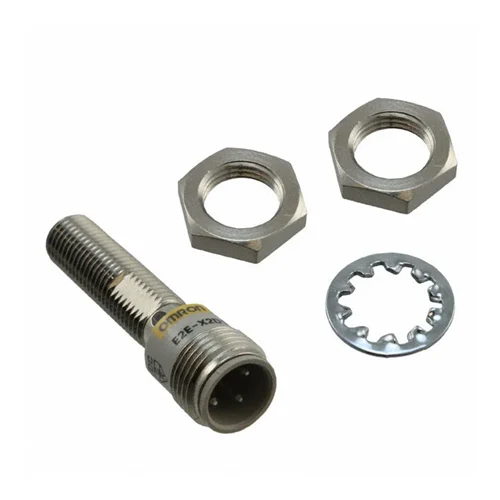

Omron E2E-X2D1-M1G shielded M8 inductive sensor with 2 mm sensing distance, normally open DC two-wire output and M12 connector.
The Omron E2E-X2D1-M1G is a shielded M8 cylindrical inductive proximity sensor with a 2 mm nominal sensing distance and an M12 connector. Its normally open DC two-wire output supports a 12 to 24 VDC supply and a 1.5 kHz response frequency. The manufacturer lists IP67 protection for connector models; its current lineup confirms the product configuration but does not state present supply status.
Shielded M8 inductive proximity sensor with 2 mm sensing distance, DC two-wire NO output and M12 connector.
| Parameter | Value |
|---|---|
| Sensing principle | Inductive proximity sensing |
| Sensor format | Shielded M8 cylindrical sensor; 43 mm body length |
| Sensing distance | 2 mm ±10% |
| Setting distance | 0 to 1.6 mm |
| Detectable object | Ferrous metal |
| Standard sensing object | Iron, 8 × 8 × 1 mm |
| Response frequency | 1.5 kHz |
| Output | DC two-wire, normally open; 3 to 100 mA load current |
| Power supply | 12 to 24 VDC (including 10% peak-to-peak ripple), Class 2 |
| Leakage current | 0.8 mA max. |
| Connection method | M12 connector |
| Operating temperature | −25 to 70 °C |
| Storage temperature | −40 to 85 °C; no icing or condensation |
| Relative humidity | 35% to 95%, non-condensing |
| IP rating | IP67 |
| Housing materials | Stainless steel SUS303 case; PBT sensing surface |
| Physical Weight (kg) | Approx. 0.040 kg, packed state |
| Dimensions L x W x H (cm) | 4.3 x 0.8 x 0.8 (43 mm body length; nominal M8 diameter) |
Engineering suggestions require suitability checks for your installation.
An assembly fixture may need to confirm the presence of a small steel component in a constrained mounting position.
The compact shielded M8 body and 2 mm nominal sensing distance can detect suitable ferrous targets without contact; verify installation clearances and target geometry.
A machine mechanism may need a discrete position signal where a replaceable connector is useful for service access.
The normally open two-wire output and M12 connector can support connection to a compatible control circuit after checking supply, load and mating connector requirements.
