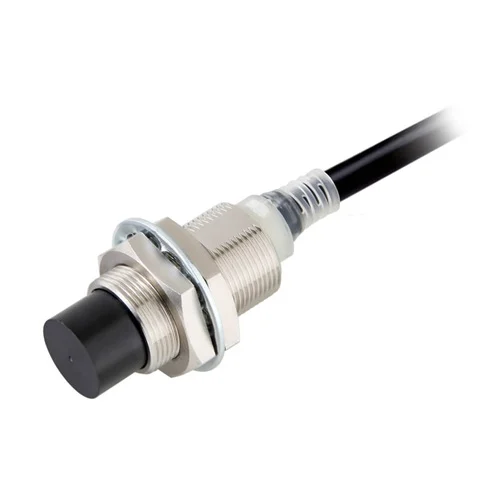

Omron E2E-X10MC118 2M is an M18 unshielded inductive sensor with 10 mm sensing distance, NPN normally open output and 2 m cable.
The Omron E2E-X10MC118 2M is an unshielded M18 inductive proximity sensor with a 10 mm nominal sensing distance. Omron lists this model in the E2E NEXT DC three-wire family with a pre-wired 2 m cable and NPN normally open output. The E2E NEXT catalog specifies a 10 to 30 VDC supply and IP67 protection for the family. The exact model specifications are documented by Omron; current supply status for this exact SKU was not established.
Unshielded M18 inductive sensor with 10 mm range, NPN NO output and 2 m cable.
| Parameter | Value |
|---|---|
| Product type | Inductive proximity sensor |
| Sensing distance | 10 mm nominal |
| Head size and type | M18, unshielded |
| Output | NPN, normally open (NO), DC three-wire |
| Connection | Pre-wired cable, 2 m |
| Supply voltage | 10 to 30 VDC (E2E NEXT family specification) |
| Protection rating | IP67 (E2E NEXT family) |
| Switching target | Ferrous metal; sensing distance is reduced for non-ferrous targets |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
An inductive field can detect metal parts without physical contact at a conveyor or assembly fixture.
Mount the M18 sensor with the specified clearance, connect the NPN NO output to a compatible input, and confirm sensing margin with the actual target.
A rugged cylindrical sensor can provide a non-contact position signal for moving metal machine components.
Set the sensor face and target gap within the sensing limits and check switching frequency against the machine cycle.
