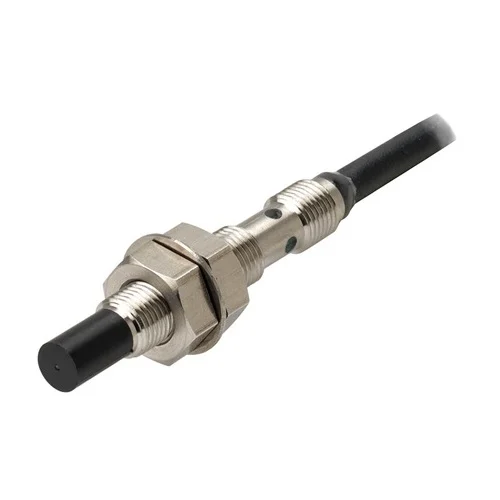

Omron E2E-S05N03-WC-B1 2M is an M5 unshielded inductive proximity sensor with 3 mm sensing distance, PNP output, 2 m PVC cable and IP67 protection.
The Omron E2E-S05N03-WC-B1 2M is an M5 threaded, unshielded inductive proximity sensor for ferrous-metal detection at a nominal 3 mm distance. It provides a DC three-wire PNP open-collector output in normally open mode, 100 mA maximum switching capacity, a 2 m oil-resistant PVC cable, and 10–30 VDC operation. Omron lists the exact model as selling and standard stock; its SUS303 stainless-steel case is rated IP67.
An M5 threaded inductive proximity sensor with 3 mm sensing distance, PNP NO output, 2 m cable and IP67 protection.
| Parameter | Value |
|---|---|
| Sensor type | Inductive proximity sensor; M5 threaded cylindrical head, unshielded |
| Sensing head size | M5 threaded |
| Sensing distance | 3 mm ±10%; setting distance 0–2.1 mm |
| Sensing object | Ferrous metal; sensitivity decreases for non-ferrous metals |
| Response frequency | 2 kHz |
| Output | PNP open collector, 3-wire DC, normally open; 100 mA maximum switching capacity |
| Power consumption | 10 mA maximum current consumption |
| Power supply | 10–30 VDC (10% peak-to-peak ripple included) |
| Indicator | Yellow operation indicator |
| Operating temperature | −25 to 70 °C |
| Storage temperature | −25 to 70 °C |
| Relative humidity | 35–95% operating and storage |
| Connection | 2 m pre-wired oil-resistant PVC cable; 3 conductors |
| IP rating | IP67; oil-proof to Omron company standard |
| Housing material | SUS303 stainless-steel case; heat-resistant ABS sensing surface; PVC cable |
| Physical Weight (kg) | Approx. 0.04 (package weight) |
| Dimensions L x W x H (cm) | 3.3 x 0.5 x 0.5 (sensor body; cable excluded) |
Engineering suggestions require suitability checks for your installation.
A small fixture may need a non-contact signal confirming that a ferrous pin or component has reached a defined position.
The M5 threaded unshielded head can be considered where mounting space is limited and the target can be positioned within the sensor's specified M5 threaded sensing range.
Assembly and handling stations may require a discrete indication that a small steel component is present near a tooling point.
The 2 kHz response and 10–30 VDC three-wire PNP output can suit fast discrete sensing when the actual target material, size, and mounting clearance are verified.
