1. High-Speed Spindle Tool Detection in CNC Machining Centers
In tight compartments of CNC machining centers, verifying the precise seating of tool holders requires a compact sensor capable of withstanding constant exposure to cutting fluids and vibrations while detecting high-speed metallic events.
Problem SolvedThe ultra-compact 3mm stainless steel housing fits perfectly into spindle micro-clearances without interfering with the machinery. The sensor's oil-resistant PVC cable and IP67 rating ensure continuous operation despite heavy coolant washdown, while the 3.5 kHz response frequency guarantees instantaneous verification of tool engagement.
CNC MachiningSpindle Tool Detection3.5 kHz Response FrequencyIP67 Ingress ProtectionOil-Resistant PVC Cable3mm Diameter Sensor
2. Semiconductor Wafer Transfer Mechanism Positioning
The precise alignment and positioning of wafer handler robot arms in semiconductor manufacturing require miniature sensors that do not add bulk to moving end-effectors but provide high-accuracy position feedback.

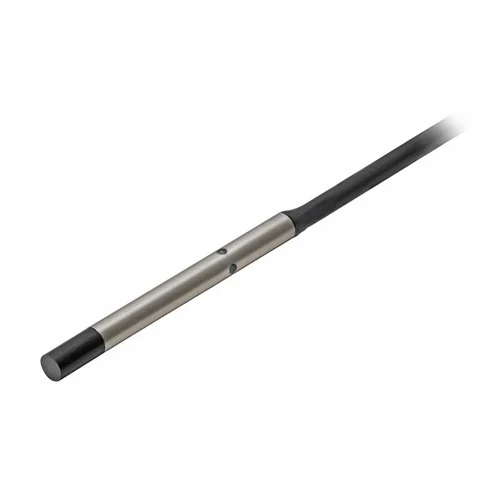

Problem SolvedWith an overall length of just 33mm and a 3mm diameter, the E2E sensor integrates seamlessly into robotic end-effectors. Its 2.0 mm sensing distance provides crucial non-contact confirmation of stage alignment without risking physical collision or contamination, sending a reliable PNP signal directly to the master control PLC.
Semiconductor ManufacturingWafer Handler RoboticsNon-Contact DetectionPNP Normally OpenMiniature Inductive Sensor2.0 mm Sensing Distance
3. Micro-Component Counting in High-Speed Packaging
Counting small metallic components (such as micro-gears, fasteners, or screws) dropping rapidly through a narrow chute presents a challenge for standard-sized sensors that cannot fit within the chute geometry or lack the switching speed to count accurately.
Problem SolvedThe unshielded (non-flush) configuration of the sensor detects small ferrous objects across a 2.0 mm sensing range precisely where standard flush sensors might miss. Combined with its exceptional 3.5 kHz switching frequency, it reliably counts rapidly dropping parts through the micro-chute, preventing batching bottlenecks and ensuring exact inventory totals.
Packaging MachineryComponent CountingUnshielded Mounting3.5 kHz Switching FrequencyNon-Flush Inductive SensorHigh-Speed Automation
