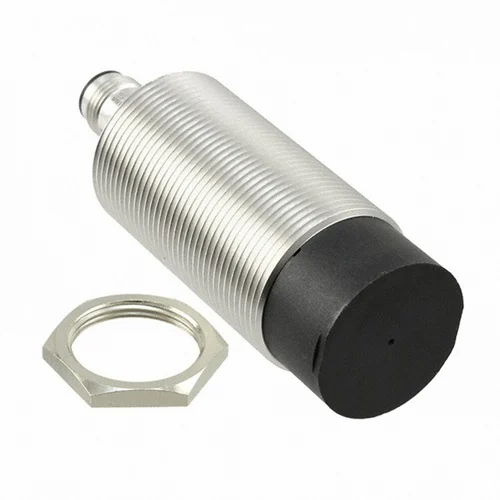

Omron E2B-M30KN20-M1-B1 M30 proximity sensor with 20 mm sensing distance, unshielded face and PNP, normally open output.
The E2B-M30KN20-M1-B1 is an M30 cylindrical inductive proximity sensor from Omron's E2B series. This short-body model provides a nominal 20 mm sensing distance with a unshielded sensing face, three-wire DC PNP, normally open output and M12 connector. Confirm mounting clearance and the controller interface against the manufacturer data before wiring.
M30 short-body proximity sensor with 20 mm sensing distance, unshielded face, PNP, normally open output and M12 connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2B |
| Sensing distance | 20 mm |
| Sensing face | Unshielded |
| Body style | Short-body |
| Thread size | M30 |
| Output | PNP, normally open |
| Connection | M12 connector |
| Rated supply voltage | 10 to 30 VDC |
| Maximum load current | 200 mA |
| Degree of protection | IP67 |
| Supply status | Unknown; exact model specifications confirmed from Omron catalog data, current supply status not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect metal targets on machine assemblies and conveyor fixtures.
Observe the applicable target and surrounding-metal clearances for this sensing face.
Monitor metal workpieces as they move through production equipment.
Connect the PNP, normally open output to a matching control input and use the listed connection style.
