24 VDC power-to-lock safety switch. Features 1,300 N holding force, dual 1NC/1NO monitoring circuits, and IP67 protection. Reliable guard interlocking for CNC and high-speed industrial machinery.

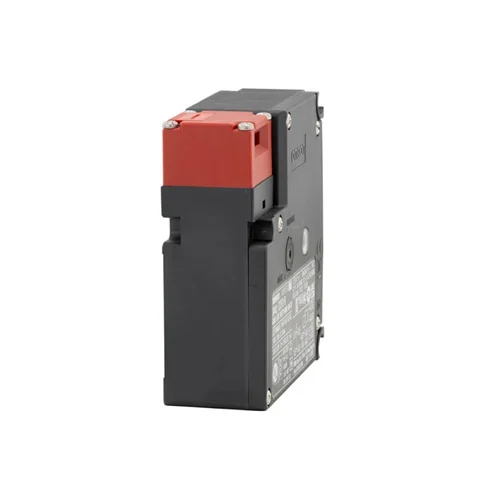

The Omron D4NL-1AFG-B is a highly reliable power-to-lock safety guard-door switch designed for automated industrial applications. It uses a 24 VDC solenoid locking mechanism to deliver a robust 1300 N minimum holding force, ensuring machinery doors remain locked during hazardous operations. The switch features 1NC/1NO contacts for door detection and 1NC/1NO contacts for lock monitoring. Housed in a durable plastic enclosure with an IP67 rating and a PG13.5 conduit entry, it withstands demanding environments while providing clear status updates via an orange LED indicator.
| Parameter | Value |
|---|---|
| Holding Force | 1300 N (minimum) |
| Contact Configuration | 1NC/1NO + 1NC/1NO |
| Conduit Outlet | PG13.5 |
| Control Voltage (Solenoid) | 24 VDC |
| Degree of Protection | IP67 |
| Operating Temperature | -10°C to +55°C |
| Rated Current | 10 A (carry current; A300) |
| Solenoid Current Consumption | 200 mA |
| Housing Material | Plastic / Resin |
Secures the physical access doors of an automated robotic assembly or welding cell.
Prevents unauthorized entry while heavy robotic arms are in motion. The 1300 N holding force ensures the door cannot be forced open until the controller issues a 24VDC unlock signal.
Interlocks the main sliding operator door on CNC milling machines and lathes.
Maintains a secure lock during high-speed cutting cycles to protect operators from moving parts and flying debris, while the IP67-rated enclosure resists degradation from continuous machine coolant spray.
Provides safety locking for maintenance gates along high-throughput material handling conveyor systems.
Ensures that power to heavy-duty conveyor motors is safely monitored via the dual 1NC/1NO contact circuits, preventing the gate from being opened until motion has completely ceased.
