USD 22.32
IP67 safety limit switch with a top pin plunger and 1NC/1NO slow-action contacts. Features a direct opening mechanism, M20 conduit, and -30°C to +70°C range.

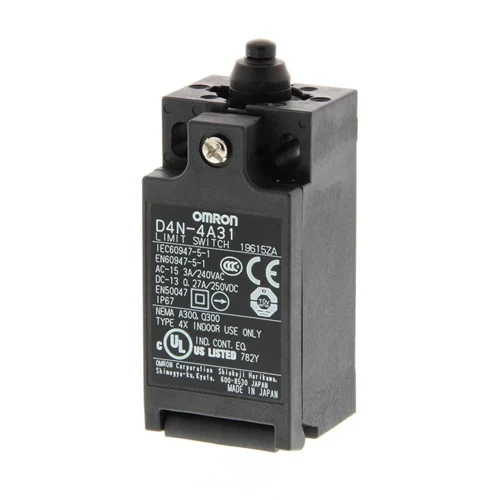

The Omron D4N-4A31 is a compact safety limit switch featuring a top pin plunger actuator, direct opening mechanism, and slow-action 1NC+1NO contacts. Housed in a durable, double-insulated plastic enclosure with an IP67 rating, it provides robust protection against dust and water ingress in harsh industrial environments. It includes an M20 conduit entry and operates reliably across a wide ambient temperature range of -30°C to +70°C. Compliant with stringent safety standards like EN ISO 14119, it is engineered for general-purpose safety monitoring, machinery interlocks, and precise mechanical position detection.
| Parameter | Value |
|---|---|
| Actuator Type | Top Pin Plunger |
| Contact Configuration | 1NC / 1NO (Slow-action) |
| Conduit Size | M20 |
| IP Rating | IP67 |
| Rated Carry Current | 10A (A300) |
| Maximum Voltage | 240 VAC / 250 VDC |
| Operating Temperature | -30°C to +70°C |
| Operating Speed | 1 to 500 mm/s |
| Max Operating Frequency | 30 operations/minute |
| Housing Material | Plastic (Double Insulation) |
Ensuring that protective access doors or physical guards on robotic assembly lines are securely closed before machinery operation is permitted.
Prevents injury to operators by reliably cutting power if a machine guard is breached, utilizing the switch's direct opening mechanism to ensure failsafe contact separation even if contacts weld.
Monitoring the physical limits and mechanical endpoints of heavy-duty material handling conveyors to avoid dangerous over-travel.
The top pin plunger precisely detects mechanical position limits. If a jam or over-travel fault occurs, the IP67-rated switch safely interrupts the motor circuit without failing from heavy industrial dust or moisture exposure.
Verifying that maintenance hatches and personnel access gates on industrial lifts or automated guided vehicles (AGV) stations are physically locked closed.
Operates safely across severe temperature variations (-30°C to +70°C) found in industrial lift shafts, guaranteeing the lift control circuit (up to 240VAC) will not engage unless all gates are mechanically verified as sealed.
