USD 306.61
Compact PLC CPU with 60 I/O, AC100-240V input, 36 DI/24 transistor NPN outputs, Ethernet, and 10K-step program capacity.

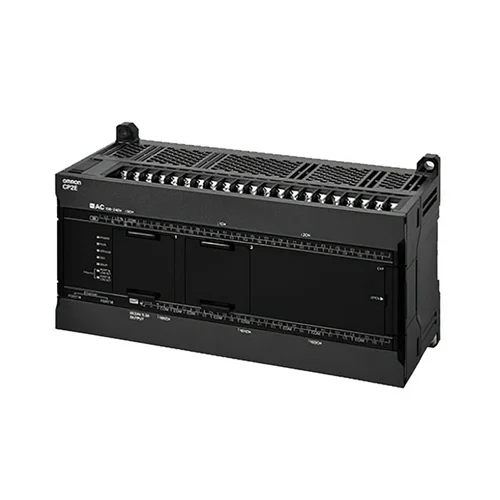

Compact network-model PLC CPU unit with 60 total I/O points, AC100-240V supply, 36 inputs, 24 transistor sinking outputs, built-in Ethernet, and 10K-step program capacity. Official Omron documentation identifies it as a CP2E network-type CPU unit for machine control, with a 24 VDC external supply not provided on this AC model and a maximum current consumption of 0.71 A at 5 VDC and 0.03 A at 24 VDC. The datasheet also lists the 60-point enclosure-mounted physical form factor and shows the unit as part of Omron’s CP2E compact PLC family.
| Parameter | Value |
|---|---|
| Power supply | AC100-240V, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Total I/O points | 60 |
| Input points | 36 |
| Output points | 24 |
| Output type | Transistor (sinking) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption at 5 VDC | 0.71 A max. |
| Current consumption at 24 VDC | 0.03 A max. |
| Enclosure | Mounted in a panel |
| Dimensions (H × D × W) | 90 mm × 80 mm × 195 mm |
| Weight | 780 g max. |
| Ethernet | Built-in Ethernet |
| Transmission speed | 100 Mbit/s (100Base-TX), 10 Mbit/s (10Base-T) |
| Protocols | TCP, UDP, ARP, ICMP (ping only), SNTP, DNS |
| Connection count | 3 for user, 1 for CX-Programmer auto connection |
A small machine panel needing PLC control, Ethernet connectivity, and enough discrete I/O for sensors, relays, and actuators fits the 60-point compact format and built-in network interface.
Reduces panel size while providing centralized control and Ethernet-based integration.
Packaging or indexing machines commonly require many limit switches, photoelectric sensors, solenoids, and motor starter commands; the 36/24 I/O split supports that mix well.
Handles moderate discrete I/O density without needing a larger modular PLC.
An OEM machine that benefits from Ethernet-based monitoring, TCP/UDP communications, and compact AC-powered operation can use this CPU unit to simplify architecture and remote troubleshooting.
Enables network diagnostics and control in a low-footprint controller.
