USD 264.00
24 VDC PLC CPU with 40 built-in I/O points, transistor outputs, 10K-step program capacity, and compact 90×80×150 mm form factor.

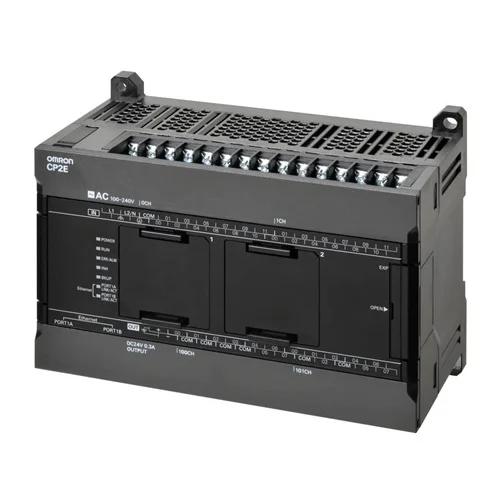

Compact CP2E-N-series PLC CPU unit with 40 built-in I/O points, 24 VDC supply, transistor outputs, and support for expansion and machine-to-machine communication. The exact model CP2E-N40DT-D is identified across Omron and distributor listings as a CP2E CPU module for industrial control applications.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Program capacity | 10K steps |
| FB capacity | 10K steps |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Programming language | Ladder diagram |
| Maximum number of I/O points | 160 (40 built-in, 40 × 3 expansion) |
| Expansion units supported | Up to 3 CP1W-series expansion units |
| Built-in I/O points | 40 |
| CPU unit dimensions (H × D × W) | 90 mm × 80 mm × 150 mm |
| Weight | 640 g max. |
| Enclosure / mounting | Mounted in a panel |
| High-speed counter inputs | Incremental pulse inputs: 100 kHz, 2 counters; 10 kHz, 4 counters |
| High-speed counter inputs | Up/down inputs: 100 kHz, 1 counter; 10 kHz, 1 counter |
| High-speed counter inputs | Pulse + direction inputs: 100 kHz, 2 counters |
| High-speed counter inputs | Differential phase inputs (4x): 50 kHz, 1 counter; 5 kHz, 1 counter |
Controls small-to-mid-sized discrete automation machines where 40 built-in I/O points and 24 VDC operation simplify panel design and wiring.
Reduces external relay logic and provides a compact controller for machine sequencing with moderate I/O density.
Fits applications needing encoder or pulse-based counting because the CPU includes high-speed counter inputs up to 100 kHz.
Accurately captures fast pulse trains from sensors or encoders without needing a separate counting module.
Useful for modular production cells that may start with 40 built-in I/O but later need up to 160 total points via expansion units.
Provides a scalable control platform that avoids immediate oversizing while preserving future expansion headroom.
