USD 264.00
40-point compact PLC CPU with AC supply, 24 DI, 16 relay DO, Ethernet/serial comms, 10 kstep program memory.

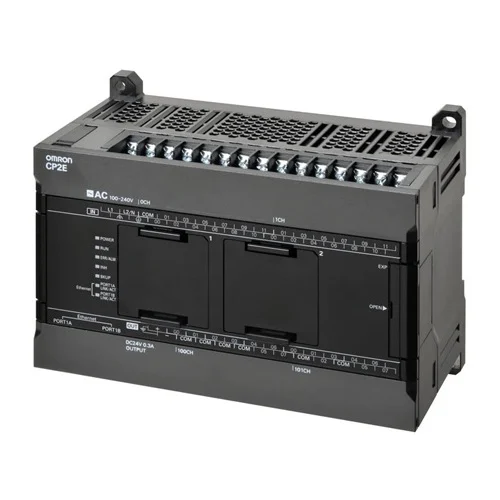

CP2E-N40DR-A is an Omron CP2E network-type compact PLC CPU unit with 40 built-in I/O points, AC mains supply, relay outputs, and integrated Ethernet plus serial communication support. Manufacturer data identifies it as the 40-point CP2E-N model with 24 digital inputs and 16 relay outputs, 10 kstep program capacity, 16 kword data memory, and support for up to 3 expansion units and 2 option modules. Official Omron specifications list a 100 to 240 VAC supply, 85 to 264 VAC operating range, 0.39 A current consumption, and a panel-mounted enclosure. The product is positioned for machine data collection, machine-to-machine communication, and compact control applications where relay I/O and network connectivity are required.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in I/O | 40 points |
| Input count | 24 points |
| Output count | 16 points |
| Output type | Relay |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption | 0.39 A |
| Enclosure | Mounted in a panel |
| Communications | 2 Ethernet, 2 Option Port |
| Battery backup | Optional Battery CP2W-BAT02 |
| Operating temperature range | -20 to 60 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 150 mm |
| Product depth (unpacked) | 80 mm |
| Product weight (unpacked) | 765 g |
The 40-point I/O count, relay outputs, and AC mains supply make it suitable for compact packaging machines needing straightforward discrete control and easy panel integration.
Reduces panel complexity by combining control, relay switching, and communications in one CPU.
Built-in Ethernet plus serial connectivity and battery-free memory backup support remote monitoring and robust restart behavior in unattended industrial skids.
Enables reliable supervisory connectivity and restart resilience without a separate controller layer.
The 10K-step program capacity, 16K-word data memory, and machine-to-machine communication focus make it a practical controller for collecting process states and production data.
Provides local logic and data retention for traceability and operational monitoring.
