USD 189.42

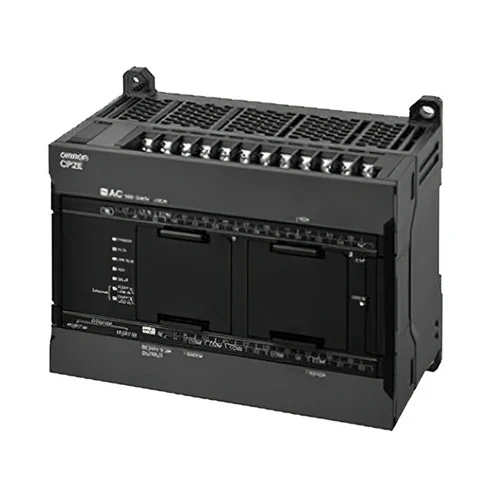

30-point compact PLC CPU with integrated Ethernet, 18 DC inputs, 12 sinking transistor outputs, and 100-240 VAC supply.
Network-model CP2E compact PLC CPU with 30 I/O points, 18 DC inputs, 12 transistor sinking outputs, integrated Ethernet, and 100-240 VAC supply. The manufacturer datasheet identifies it as an AC-powered CPU unit for panel mounting with 10K-step program memory and 16K-word data memory, positioned for compact machine control and networked automation applications.
| Parameter | Value |
|---|---|
| Model family | CP2E-N-type / Network model |
| Built-in I/O | 30 points |
| Input count | 18 points |
| Output count | 12 points |
| Output type | Transistor (sinking) |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Program capacity | 10K steps |
| FB capacity | 10K steps |
| Data memory capacity | 16K words |
| Current consumption at 5 VDC | 0.52 A |
| Current consumption at 24 VDC | 0.03 A |
| Enclosure | Mounted in a panel |
| Dimensions (H × D × W) | 90 mm × 80 mm × 130 mm |
| Weight | 580 g max. |
| External power supply | 24 VDC, 300 mA provided for CP2E-@30/40/60D@-A |
| Built-in communications | 2 Ethernet, 2 Option Port |
| Total I/O capacity | 150 |
Suitable for small packaging lines that need a compact controller with Ethernet connectivity, discrete I/O, and enough memory for machine sequencing and interlocks.
Replaces a larger PLC where space is limited while still supporting networked control and multiple sensors/actuators.
Fits conveyor stations requiring synchronized photoeye inputs, motor starter logic, alarms, and upstream/downstream communication over Ethernet.
Provides reliable on-machine logic control with built-in network integration for line coordination.
Works well for retrofit upgrades where an older relay or limited-function controller is replaced by a compact CPU with programmable memory and expansion capability.
Enables modernization without oversized hardware, using a 100-240 VAC supply and panel-mounted footprint.
