30-point micro PLC CPU with 24 VDC supply, relay outputs, Ethernet TCP/IP, serial comms, and 10K-step program memory.

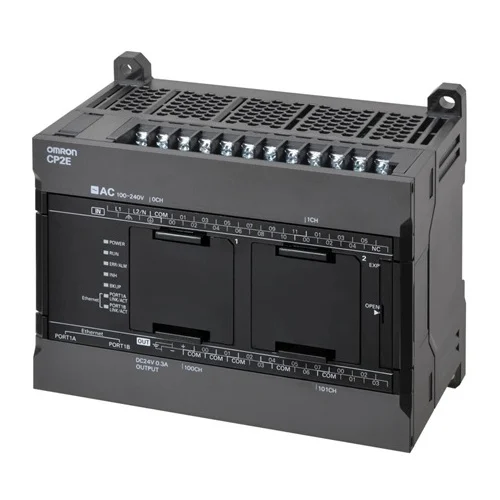

CP2E-N30DR-D is an OMRON CP2E Network-model CPU unit with 30 I/O points, 24 VDC supply, relay outputs, 18 inputs, 12 outputs, and 10K-step program capacity. The official datasheet lists built-in Ethernet TCP/IP and serial communications, plus compact panel-mount construction for micro PLC control applications.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Input count | 18 inputs |
| Output count | 12 outputs |
| Output type | Relay |
| Current consumption at 5 VDC | 0.37 A |
| Current consumption at 24 VDC | 0.07 A |
| Built-in communications | Ethernet TCP/IP, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Mounting | Panel mounted |
| Dimensions (H × D × W) | 90 mm × 80 mm × 130 mm |
| Weight | 580 g max. |
Controls small-to-medium discrete machines using the 18 digital inputs and 12 relay outputs, with enough memory for standard sequencing logic.
Replaces hardwired relay panels and simplifies logic control for compact automation cells.
Adds networked control to existing equipment through built-in Ethernet TCP/IP while retaining relay outputs for direct field device switching.
Eliminates the need for a separate communications module in retrofit projects.
Suitable for conveyor sections, indexers, and feeder stations that require moderate I/O count, deterministic switching, and compact enclosure mounting.
Fits space-constrained control cabinets while providing sufficient I/O and communication interfaces.
