USD 189.42

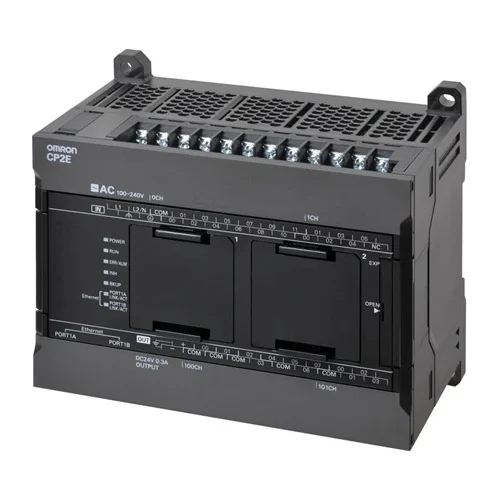

30-point compact PLC CPU with 18 digital inputs, 12 relay outputs, AC 100–240 V supply, 10K-step program capacity.
30-point compact PLC CPU with 18 digital inputs, 12 relay outputs, AC 100–240 V supply, 10K-step program capacity.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in I/O points | 30 |
| Inputs | 18 digital inputs |
| Outputs | 12 relay outputs |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption at 5 VDC | 0.41 A |
| Current consumption at 24 VDC | 0.07 A |
| Power consumption at 100 VAC | 50 VA max. |
| Power consumption at 240 VAC | 70 VA max. |
| Enclosure mounting | Mounted in a panel |
| Dimensions (H × D × W) | 90 mm × 80 mm × 130 mm |
| Weight | 580 g max. |
| External power supply | 24 VDC, 300 mA |
| Output type | Relay |
| Model family | CP2E-N-type / Network model |
| Physical Weight (kg) | 0.69 |
| Dimensions L x W x H (cm) | 13 x 8 x 9 |
The 30-point I/O mix and relay outputs suit small packaging lines that need direct control of solenoids, lamps, contactors, and sensors from a compact panel PLC.
Replaces hardwired relay logic while providing enough I/O and program memory for coordinated sequence control.
The AC 100–240 V supply and 12 relay outputs make it suitable for conveyor start/stop, diversion gates, and status signaling in compact material-handling systems.
Provides straightforward load switching and controller integration without separate output relays for many common loads.
The 16K-word memory and network-model architecture fit compact auxiliary skids such as pump panels, mixers, or dosing stations that need local logic plus communications.
Combines local sequencing with network-capable PLC architecture in a small footprint.
