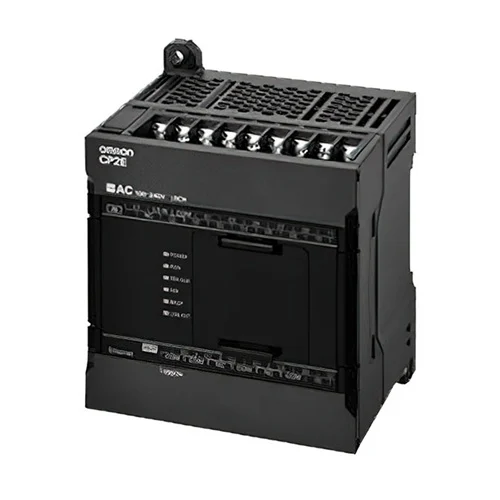

Compact 20-point PLC CPU with built-in Ethernet, 10K-step program memory, and sinking transistor outputs for panel-mounted control.
Compact network-type CP2E CPU unit with 20 I/O points and transistor (sinking) outputs. Manufacturer documentation shows 12 inputs, 8 outputs, 10K-step program capacity, 16K-word data memory, and AC-powered network model designation for the CP2E-N20DT-A. Omron specifies a panel-mounted enclosure, built-in Ethernet, and a compact 90 mm × 80 mm × 86 mm form factor for the 14/20-point class. The published current consumption for this exact model is 0.27 A at 5 VDC and 0.02 A at 24 VDC. No verified GTIN was found in the available sources.
| Parameter | Value |
|---|---|
| Input points | 12 |
| Output points | 8 |
| Output type | Transistor (sinking) |
| Program capacity | 10K steps |
| Data memory capacity | 16K words |
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Current consumption (5 VDC) | 0.27 A |
| Current consumption (24 VDC) | 0.02 A |
| Enclosure | Mounted in a panel |
| Dimensions (H × D × W) | 90 mm × 80 mm × 86 mm |
| Weight | 340 g max. |
| Built-in Ethernet | 100Base-TX, 10Base-T |
| Ethernet auto negotiation | Yes |
| Ethernet auto MDI/MDI-X | Yes |
| Power consumption | 15 VA/100 VAC max.; 25 VA/240 VAC max. |
Fits small machine control panels where 12 discrete inputs and 8 sinking transistor outputs are enough for sensors, valves, indicators, and interlocks.
Provides a small-footprint PLC that replaces relay logic while preserving fast discrete switching and network connectivity.
Suitable for a compact packaging or inspection station that needs Ethernet-based supervisory communication and deterministic discrete control in a small enclosure.
Combines machine control and plant network connectivity without requiring a larger controller platform.
Useful in OEM equipment with a modest number of sensors and actuators, where the controller must fit inside a tight cabinet and support basic machine-to-machine data exchange.
Reduces cabinet space while supporting network integration and local discrete I/O control.
