USD 353.49
36-in/24-out 24 VDC PLC CPU, PNP transistor outputs, 10K steps, 32K words, USB, 4 encoder inputs, 100 kHz pulse control.

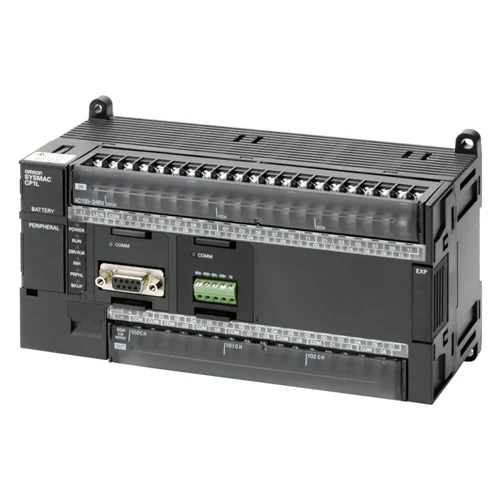

Compact CP1L-series CPU unit with 24 VDC supply, 36 digital inputs, 24 transistor outputs (sourcing/PNP), 10K-step program capacity, and 32K-word data memory. Supports USB communication, optional serial option boards, 4 encoder input channels, 100 kHz high-speed counters, 2 pulse-output axes, and expandable I/O architecture up to 3 modules. Designed as a DIN-rail chassis-mounted PLC for compact machine control and distributed automation applications.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Voltage - Supply | 24 VDC |
| Number of digital inputs | 36 |
| Input type | PNP/NPN |
| Number of digital outputs | 24 |
| Output type | PNP |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | TRUE |
| Battery-free memory backup | FALSE |
| Real-time clock | TRUE |
| Analogue option boards | FALSE |
| Max. number of analogue I/O channels | 25 |
| Max. number of local I/O points | 180 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 195 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 680 g |
| Mounting type | Chassis mount, DIN rail |
| Ingress protection | Not specified |
The 36 inputs and 24 PNP outputs let the controller manage photoeyes, limit switches, solenoids, and reject actuators in a compact packaging machine.
Consolidates discrete machine sequencing into one small DIN-rail PLC with fast response and enough I/O for a compact station.
Four encoder input channels and 100 kHz high-speed counting support position tracking for indexing tables, cut-to-length systems, and rotary mechanisms.
Provides reliable pulse capture and motion coordination without requiring a larger motion controller.
Expandable up to 3 modules with optional serial communications makes it suitable for small OEM equipment that may later need added I/O or peripheral connectivity.
Allows an OEM to start with a compact base controller and expand I/O or communication capability as the machine evolves.
