60-point 24 VDC PLC CPU with transistor sinking outputs, 10K-step memory, USB, 100 kHz counters, and 2-axis pulse output.

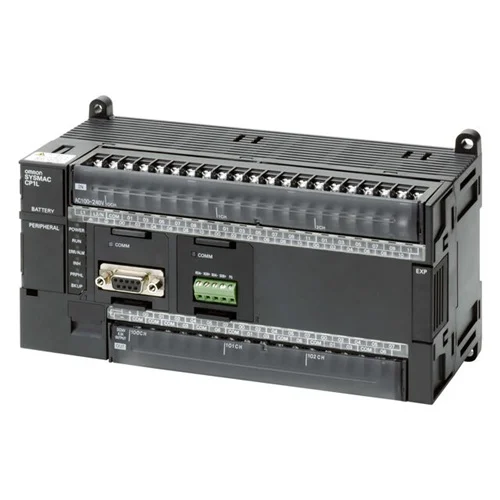

CP1L-M60DT-D is an Omron CP1L-series compact programmable controller CPU unit with 60 built-in I/O points, 24 VDC power supply, transistor sinking outputs, and a standard peripheral USB port. Manufacturer documentation identifies it as a 10K-step CPU with 100 kHz high-speed counters for 4 axes and 100 kHz pulse outputs for 2 axes (transistor-output models only). The unit is intended for compact machine control with expansion-unit support and Omron CP1W peripheral integration. Engineering specs such as supply range, environmental limits, and dimensions are drawn from Omron’s official CP1L CPU unit datasheet and specifications pages. ([assets.omron.eu](https://assets.omron.eu/downloads/latest/datasheet/en/p081_cp-series_cp1l_cpu_unit_datasheet_en.pdf))
| Parameter | Value |
|---|---|
| Power supply | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 20 W max. |
| Inrush current | 30 A max. (cold start at room temperature), 20 ms max. |
| External power supply | None |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4; 2 kV (power supply line) |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Memory capacity | 10K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes (models with transistor outputs only) |
| Built-in I/O points | 60 points |
| Output method | Transistor output (sinking) |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Function blocks | Maximum definitions: 128; maximum instances: 256 |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 μs min.; special instructions: 4.1 μs min. |
| Common processing time | 0.4 ms |
| Number of tasks | 288 (32 cyclic tasks and 256 interrupt tasks) |
| Scheduled interrupt tasks | 1 (interrupt task No. 2, fixed) |
| Input interrupt tasks | 6 (interrupt task No. 140 to 145, fixed) |
| Maximum subroutine number | 256 |
| Maximum jump number | 256 |
| USB port | Peripheral USB port |
| Dimensions | Approx. 110 mm x 90 mm x 85 mm (datasheet figure for CP1L-M60 CPU unit) |
| Mounting holes | Four, 4.5 mm diameter |
| Weight | 820 g max. |
The 60-point I/O count, 100 kHz high-speed counters, and 2-axis pulse outputs support coordinated sensing and motion on a small packaging machine.
Provides deterministic control for conveyors, photoelectric sensors, and stepper/servo pulse trains in a limited panel footprint.
The 24 VDC supply, transistor sinking outputs, and fast scan-based control suit conveyor interlocks, reject gates, and presence detection in industrial handling systems.
Delivers fast switching for relays, solenoids, and indicators while maintaining compact wiring architecture.
The 10K-step memory, ladder/ST support, and 100 kHz counter capability fit compact indexing machines that need precise part counting and position feedback.
Enables pulse-based position tracking and recipe logic in a cost-efficient controller for small OEM equipment.
