USD 332.18
60-point compact PLC CPU with AC supply, 36 inputs, 24 sinking transistor outputs, 10K steps, 100 kHz counters and pulse outputs.

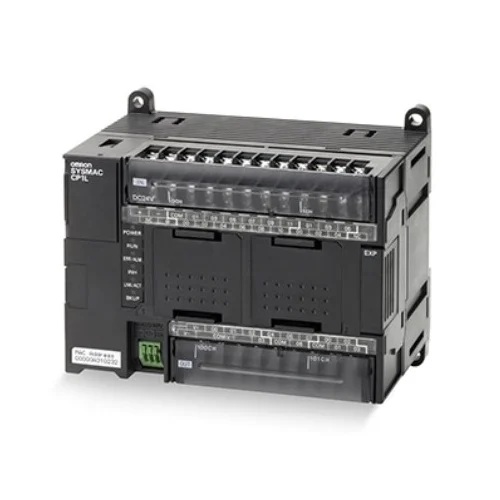

OMRON CP1L-M60DT-A is a CP1L-M series programmable logic controller CPU unit with 60 built-in I/O points, AC power input, and transistor outputs in sinking configuration. The manufacturer datasheet identifies it as a 10K-step CPU with 36 inputs and 24 outputs, 100 kHz high-speed counters on 4 axes, and 100 kHz pulse outputs on 2 axes for transistor-output models. It is part of the CP1L compact controller family and is intended for machine control and small-to-mid automation tasks. The official lineup and datasheet pages confirm the exact model family and I/O configuration, while distributor listings align the ordering code and weight information.
| Parameter | Value |
|---|---|
| Power supply | AC |
| Output method | Transistor output (sinking) |
| Built-in inputs | 36 |
| Built-in outputs | 24 |
| Program capacity | 10K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes |
| Product width | 195 mm |
| Product height | 90 mm |
| Product depth | 85 mm |
| Weight | 820 g max. |
| Mounting hole diameter | 4.5 mm (four holes) |
A 60-point AC-powered CPU with 36 inputs and 24 sinking transistor outputs fits compact packaging machines that need coordinated sensors, solenoids, and status outputs in a small cabinet.
Reduces panel size while still providing enough I/O for conveyor, sensor, and actuator control.
The 100 kHz high-speed counters and 100 kHz pulse outputs support basic position feedback and pulse-train motion tasks in small indexing stations or pick-and-place machines.
Enables encoder counting and pulse positioning without a separate motion controller.
The AC supply, compact footprint, and 10K-step CPU capacity make this unit suitable for replacing legacy relay logic in small machines such as pumps, feeders, or assembly skids.
Modernizes control logic with a compact all-in-one PLC CPU and integrated I/O.
