USD 340.70
24 VDC compact PLC CPU with 60 I/O points, relay outputs, 10K-step memory, and 100 kHz high-speed counter support.

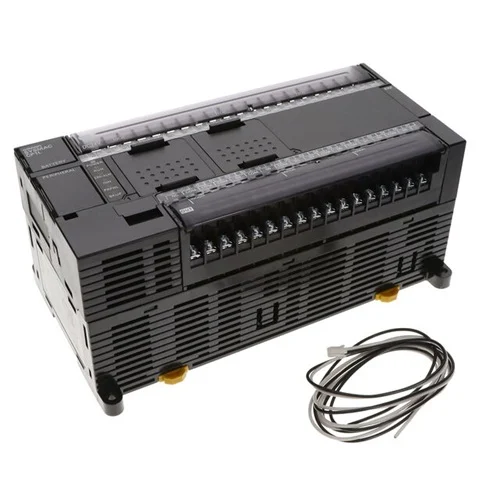

Compact CP series PLC CPU unit with 60 built-in I/O points, DC 24 V supply, and relay outputs. The M60 class provides 10K-step memory, 100 kHz high-speed counter capability across 4 axes, and 100 kHz pulse outputs on transistor-output variants. Manufacturer data shows 24 built-in inputs and 16 built-in outputs for the CP1L-M60DR-D configuration, with a 24 VDC supply and 20.4 to 26.4 VDC operating range. The CP1L family supports ladder programming, cyclic scan control with immediate refreshing, and a built-in USB port for commissioning and service.
| Parameter | Value |
|---|---|
| Power supply | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Built-in input terminals | 60 total built-in I/O points; 24 inputs and 16 outputs |
| Output method | Relay output |
| Program capacity | 10K steps |
| High-speed counters | 100 kHz, 4 axes |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Power consumption | 20 W max. for CP1L-M60/-M40/-M30 DC models |
| Inrush current | 30 A max. for DC power supply; 20 ms max. |
| External power supply | None for DC power supply models |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Noise immunity | Conforms to IEC 61000-4-4; 2 kV (power supply line) |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Battery service life | 5 years at 25°C (model dependent) |
| Built-in USB port | Yes |
The 24 VDC supply, relay outputs, and 100 kHz high-speed counter capability fit compact conveyor indexing and station sequencing systems that need dependable discrete control with moderate-speed feedback.
Provides compact control of multiple sensors, solenoids, and indexing logic without requiring a larger PLC platform.
With 24 built-in inputs and 16 relay outputs, the unit is well matched to machine interlock panels, guarding logic, and sequence control in small production equipment.
Consolidates discrete machine logic into a single compact controller with sufficient I/O density for small machines.
The M60 class specification includes 100 kHz counters and family support for pulse outputs on transistor variants, making it suitable for simple synchronization or counting-based automation tasks.
Supports high-speed counting and basic timing logic for encoder-based or pulse-driven machine functions.
