AC-powered PLC CPU with 36 inputs, 24 relay outputs, 10K steps, 100 kHz counters, and compact CP1L architecture.

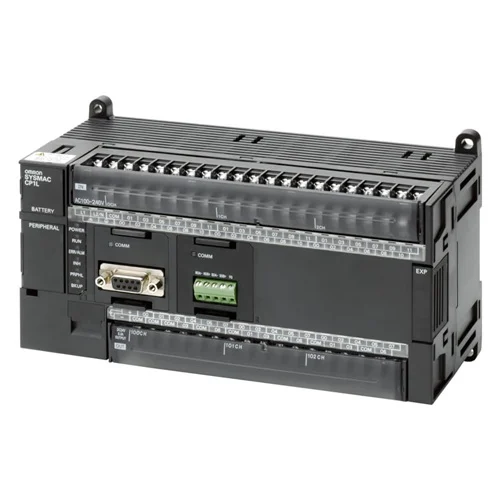

Compact CP1L-M series CPU unit with 60 built-in I/O points, AC supply, and relay outputs. Official Omron documentation identifies this model as a 10K-step PLC CPU with 36 inputs and 24 outputs, 100 kHz high-speed counters on 4 axes, pulse outputs up to 100 kHz on transistor-output variants, and built-in Ethernet/USB architecture for the CP1L family overview. Distributor listings confirm the AC-powered relay-output configuration and the 10K-step program plus 32K-word data memory positioning.
| Parameter | Value |
|---|---|
| Power supply | 100 to 240 VAC |
| Input points | 36 |
| Output points | 24 |
| Output type | Relay |
| Output contact rating | 2 A |
| Program capacity | 10K steps |
| Data memory | 32K words |
| High-speed counters | 100 kHz |
| High-speed counter axes | 4 axes |
| Built-in I/O total | 60 points |
| Input voltage | 24 VDC |
| External power supply output | 300 mA at 24 VDC |
| Maximum power consumption | 20 W max. |
| Inrush current, 100 to 120 VAC | 20 A max. for cold start at room temperature, 8 ms max. |
| Inrush current, 200 to 240 VAC | 40 A max. for cold start at room temperature, 8 ms max. |
| Inrush current, alternate 200 to 240 VAC note | 30 A max. for cold start at room temperature, 20 ms max. |
| Relay output max switching capacity | 2 A, 250 VAC (cos φ = 1) / 2 A, 24 VDC |
| Relay output minimum switching capacity | 5 VDC, 10 mA |
| Relay electrical life | 100,000 operations at 24 VDC resistive load |
| Relay mechanical life | 20,000,000 operations |
Controls interlocked motors, solenoids, and sensors in a compact packaging machine where 36 inputs and 24 relay outputs are sufficient for discrete sequencing.
Reduces panel complexity by combining substantial built-in I/O with relay outputs for direct field-device switching.
Manages start/stop logic, sensor gating, and zone transfers on a conveyor line while using the 100 kHz counter capability for encoder or pulse-tracking tasks.
Provides dependable logic control and high-speed counting for machine coordination without a separate motion controller.
Fits retrofit projects that need AC-powered control, multiple relay outputs, and moderate program memory in a compact PLC footprint.
Replaces aging hardwired relay logic with programmable control while preserving straightforward relay interfacing to existing loads.
