24 VDC PLC CPU with 24 inputs, 16 NPN outputs, USB, 10K steps, 32K-word memory, 100 kHz counters, and compact DIN-rail format.

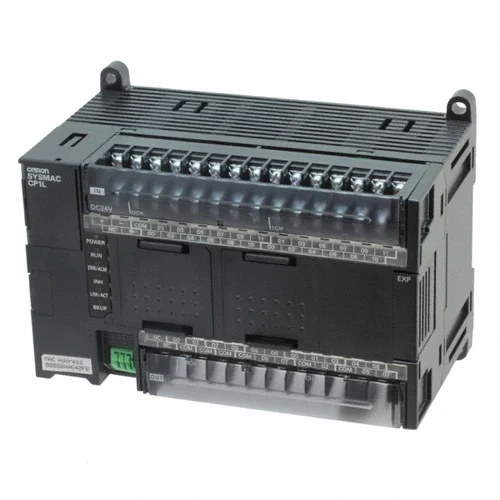

Compact CP1L CPU unit for 24 VDC control systems with 24 digital inputs, 16 NPN transistor outputs, USB programming, 10K-step program memory, and 32K-word data memory. Official Omron documentation and distributor listings identify this exact model as a DC-supplied DIN-rail PLC CPU with built-in high-speed counter and pulse-output capability. Omron also lists 4 encoder input channels, 100 kHz maximum encoder input frequency, 2 PTP axes, and 100 kHz pulse outputs, making it suitable for motion-related and multi-axis machine control in a compact footprint.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Supply voltage | 24 VDC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | NPN |
| Output current | 0.3 A |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | TRUE |
| Battery-free memory backup | FALSE |
| Real-time clock | TRUE |
| Analogue option boards | FALSE |
| Max. number of analogue I/O channels | 25 |
| Max. number of local I/O points | 160 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 150 mm |
| Product depth (unpacked) | 85 mm |
| Product weight (unpacked) | 550 g |
Controls small-to-medium discrete machines with 24 inputs and 16 transistor outputs, fitting panel-space-limited OEM equipment.
Replaces larger PLCs when compact DIN-rail control with moderate I/O count is required.
Uses the 100 kHz pulse output and 2 PTP axes support for stepper or pulse-train servo positioning in compact automation cells.
Provides motion-capable control without a dedicated motion controller.
Supports 4 encoder inputs and 100 kHz counting for length measurement, registration, or speed-synchronized inspection tasks.
Enables real-time counting and synchronization in packaging, converting, or feed-line equipment.
