USD 319.40
AC-powered 40-point PLC CPU with sinking transistor outputs, 10K-step memory, 100 kHz counters, and 2-axis pulse output.

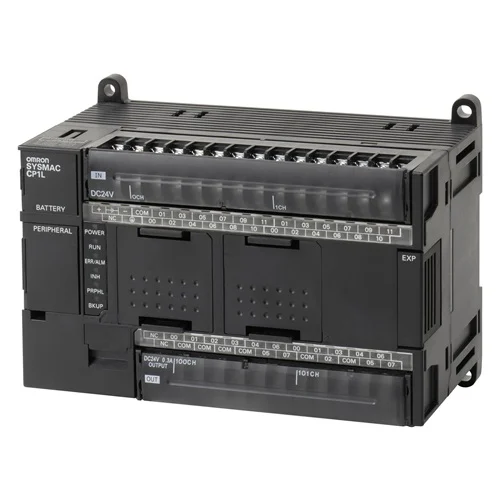

Compact CP1L-M series CPU unit with AC power supply and transistor sinking outputs. The model provides 40 built-in I/O points, 10K-step memory, 100 kHz high-speed counters on 4 axes, and 100 kHz pulse outputs on 2 axes. Official Omron documentation identifies this exact part number as an AC-powered, sinking-transistor CPU unit in the CP1L-M family.
| Parameter | Value |
|---|---|
| Power supply | AC |
| Output method | Transistor output (sinking) |
| Built-in I/O points | 40 |
| Inputs | 24 |
| Outputs | 16 |
| Program memory capacity | 10K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes |
| Bare product dimensions | 150 mm x 85 mm x 110 mm |
| Mounting hole pattern | Four holes, 4.5 mm diameter |
| Weight | 675 g max. |
The 100 kHz pulse outputs and 4-axis 100 kHz high-speed counters make this CPU suitable for compact indexing machines, small gantries, and rotary position control systems.
Provides fast position feedback and pulse train generation in a single compact controller.
The 40-point I/O count and compact AC-powered CPU architecture fit carton erectors, labelers, and light packaging lines that need deterministic discrete control.
Consolidates machine sequencing, sensing, and actuator control without requiring a larger PLC.
The combination of 24 inputs, 16 outputs, and compact enclosure dimensions supports conveyor zones, stop gates, diverters, and part presence logic in space-limited panels.
Delivers enough I/O density for conveyor automation while conserving panel space.
