USD 323.66

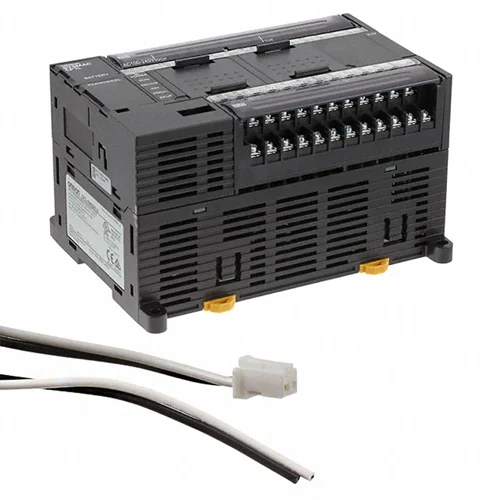

Compact PLC CPU with 40 I/O, 24 inputs, 16 relay outputs, 10K steps, 100-240 VAC supply, USB, and 4 high-speed encoder inputs.
Compact PLC CPU unit with 10K-step program capacity, 40 integrated I/O points, 24 digital inputs, 16 relay outputs, and 100-240 VAC power supply. Official Omron documentation identifies it as a CP1L-M CPU unit with AC supply, relay output stage, 32K words data memory, 0.55 µs logic execution time, USB port, 4 high-speed encoder inputs, and up to 160 local I/O points with expansion capability. Omron lists the product as planned for end of production on 2027-06-30.
| Parameter | Value |
|---|---|
| Supply voltage type | AC |
| Supply voltage | 100-240 VAC |
| Digital inputs | 24 |
| Input type | PNP/NPN |
| Digital outputs | 16 |
| Output type | Relay |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | Not specified |
| Battery-free memory backup | Not specified |
| Real-time clock | Not specified |
| Analogue option boards | Not specified |
| Max. number of analogue I/O channels | 25 |
| Max. number of local I/O points | 160 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 675 g |
The 40-point I/O count, relay outputs, and AC supply suit compact pack-out machines that need direct field switching without adding external interface relays for every load.
Reduces panel complexity in small machines that mix sensors, solenoids, and pilot loads on one controller.
The 4 encoder input channels and 100 kHz counting capability make it suitable for position tracking, part counting, and simple motion coordination on conveyor-based stations.
Provides high-speed pulse capture for station timing and part position monitoring.
Up to 160 local I/O points and 3 expansion units allow the base CPU to scale for fixtures, inspection stations, and interlocked process cells without moving to a larger PLC platform.
Lets a compact control system grow with added I/O while keeping the same CPU family and programming environment.
