USD 295.96
24 VDC micro-PLC CPU, 30 built-in I/O, transistor sourcing outputs, 10K-step program, 32K-word data memory.

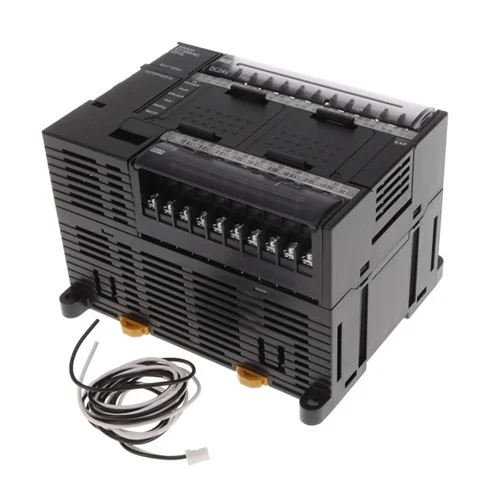

Compact CP1L-series CPU unit for machine automation with 24 VDC supply, 30 built-in I/O points, and transistor sourcing outputs. Official Omron documentation identifies the M30 DC model as a 30-point CP1L CPU with 18 inputs and 12 outputs, 10K-step program capacity, 32K-word data memory, up to 3 expansion units, built-in USB communications, and support for high-speed counter and pulse output functions on transistor-output models. The broader CP1L family uses a micro-PLC architecture for compact machines with optional serial/Ethernet connectivity and expansion capability.
| Parameter | Value |
|---|---|
| Power supply | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Built-in I/O points | 30 |
| Built-in inputs | 18 |
| Built-in outputs | 12 |
| Output method | Transistor output (sourcing) |
| Program capacity | 10K steps |
| Data memory | 32 Kwords |
| Max. number of connectable expansion units | 3 |
| Communications | USB, 2 Option Port |
| Real-time clock | Yes |
| Battery backup | Yes |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power supply line) |
| Vibration resistance | JIS C60068-2-6; 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, 9.8 m/s² |
| Shock resistance | JIS C60068-2-27; 147 m/s² |
| Power holding time | 2 ms min. for DC power supply models |
| High-speed counters | 4 inputs/2 axes, 24 VDC |
| High-speed counter frequency | 100 kHz max. single-phase; 50 kHz differential phases |
| Pulse outputs | 2 outputs, 1 Hz to 100 kHz (transistor-output models only) |
| Analog input | 2 inputs, 0 to 10 V, not isolated |
The 24 VDC CPU with 100 kHz pulse outputs and 4 high-speed counter inputs is well suited to small indexing systems, where precise pulse generation and feedback counting are needed in a compact cabinet.
Provides synchronized stepper/servo pulse control and encoder counting without requiring a larger PLC platform.
With 30 built-in I/O points and expansion capability, the unit can directly manage sensors, diverters, solenoids, and reject devices in a small conveyor or sorting station.
Eliminates the need for an oversized controller while still leaving room for I/O growth.
The integrated USB communications, clock, battery backup, and 10K-step program memory make it appropriate for standalone skids that need local logic, time-stamped sequences, and maintenance access.
Supports reliable standalone automation with service access and retained data during power interruptions.
