USD 272.52
AC PLC CPU with 18 inputs, 12 relay outputs, 10K steps, 32K words, USB, 24 VDC aux output, and compact 90×130×85 mm housing.

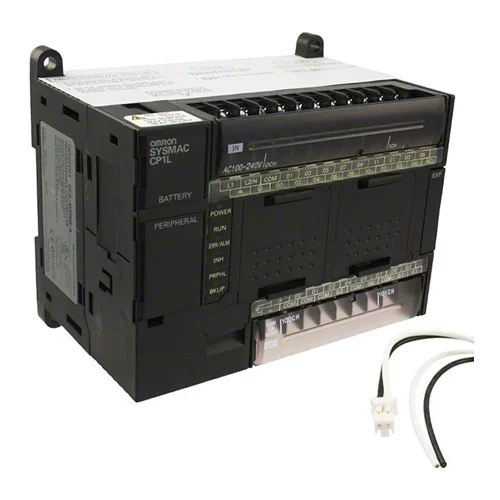

Compact CP1L CPU unit with AC supply, 18 digital inputs, 12 relay outputs, 10K-step program capacity, 32K-word data memory, USB communications, and support for serial option boards. The unit is positioned as a 30-point PLC base with integrated high-speed counter channels and expansion capability for small machine control applications. Omron lists the product as an AC-powered controller with 0.55 µs logic execution time, 24 VDC auxiliary output, and a planned production end date of 2027-06-30.
| Parameter | Value |
|---|---|
| Supply voltage type | AC |
| Number of digital inputs | 18 |
| Input type | PNP/NPN |
| Number of digital outputs | 12 |
| Output type | Relay |
| Program capacity | 10 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Function Block programming | TRUE |
| Battery-free memory backup | FALSE |
| Real-time clock | TRUE |
| Analogue option boards | FALSE |
| Max. number of analogue I/O channels | 25 |
| Max. number of local I/O points | 150 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | 0-55 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 130 mm |
| Product Depth (unpacked) | 85 mm |
| Product Weight (unpacked) | 610 g |
Manages small standalone machines that need deterministic ladder logic, 18 inputs for sensors, and 12 relay outputs for actuators on an AC-powered base unit.
Replaces hardwired relay panels with a compact programmable controller while preserving relay switching compatibility for legacy loads.
Supports low-to-mid speed motion or position monitoring using 4 encoder input channels at up to 100 kHz, suitable for packaging, counting, or simple registration tasks.
Provides encoder-based tracking without needing a motion controller, reducing system cost and wiring complexity.
Fits retrofit projects requiring 24 VDC auxiliary power, up to 3 expansion units, and serial communication options for HMIs, drives, or remote devices.
Allows incremental upgrades of older equipment while maintaining compact mounting footprint and communication flexibility.
