USD 225.65

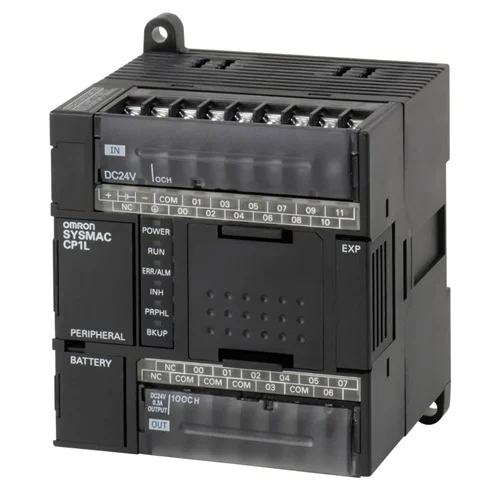

24 VDC compact PLC CPU with 12 inputs, 8 transistor outputs, 5K-step memory, USB, 100 kHz high-speed I/O.
24 VDC compact PLC CPU with 12 inputs, 8 transistor outputs, 5K-step memory, USB, 100 kHz high-speed I/O.
| Parameter | Value |
|---|---|
| Power supply type | DC |
| Rated supply voltage | 24 VDC |
| Digital inputs | 12 |
| Input type | PNP/NPN |
| Digital outputs | 8 |
| Output type | Transistor (sourcing) |
| Program capacity | 5K steps |
| Data memory capacity | 10K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | USB |
| Ethernet ports | 0 |
| USB ports | 1 |
| RS-232 ports | 0 |
| RS-485 ports | 0 |
| Communication options | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Encoder input channels | 4 |
| Max encoder input frequency | 100 kHz |
| Max PTP axes | 2 |
| Max pulse output frequency | 100 kHz |
| Function block programming | Supported |
| Battery-free memory backup | Not supported |
| Real-time clock | Supported |
| Analogue option boards | Not supported |
| Max analogue I/O channels | 8 |
| Max local I/O points | 60 |
| Max expansion units | 1 |
| Physical Weight (kg) | 0.335 |
| Dimensions L x W x H (cm) | 8.6 x 8.5 x 9 |
Suitable for small indexing tables, feeders, and pick-and-place mechanisms that need 100 kHz pulse outputs and 2-axis positioning from a compact PLC CPU.
Delivers deterministic pulse control for compact motion systems without a separate motion controller.
Well matched to small packaging or assembly skids requiring 24 VDC control, 12 inputs, and 8 transistor outputs for sensors, valves, relays, and status lamps.
Combines machine sequencing and fast discrete switching in a very small I/O footprint.
Supports applications such as length counting, registration, or simple web handling using 4 high-speed encoder channels at up to 100 kHz.
Enables reliable high-speed position/count acquisition for compact production machinery.
