USD 193.69
24 VDC compact PLC CPU with 8 DC inputs, 6 sourcing transistor outputs, USB programming, expansion support, and battery backup.

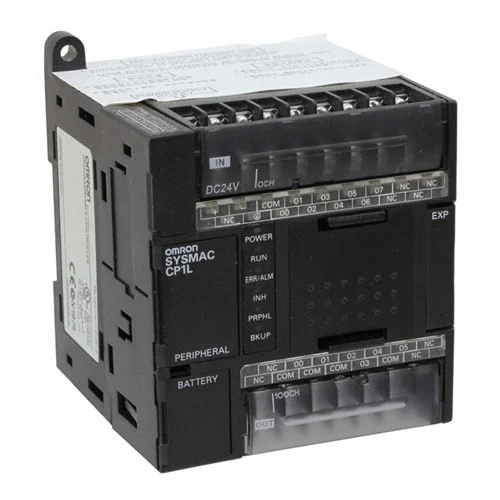

Compact Omron CP1L L-series CPU unit with 24 VDC supply, 8 built-in DC inputs, 6 transistor outputs, USB programming port, and support for expansion/option boards. Manufacturer documentation identifies this exact model as a 14-point DC power-supply CPU with sourcing transistor outputs and up to 54 total I/O points; it supports high-speed counter and pulse output functions within the CP1L family. Marketing listings confirm it as a control logic PLC for compact machine control with battery backup, option cards, and DIN-rail/chassis mounting.
| Parameter | Value |
|---|---|
| Power supply | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Built-in I/O | 14 points |
| Built-in inputs | 8 DC inputs |
| Built-in outputs | 6 transistor outputs |
| Output method | Transistor output (sourcing) |
| Program capacity | 5K steps |
| Total I/O capacity | 54 points |
| Max. expansion I/O units | 1 |
| Max. option modules | 1 |
| Communications | USB, 1 option port |
| Clock/calendar | Yes |
| Battery backup | Yes |
| Ambient operating temperature | 0 to 55 °C |
| Ambient humidity | 10% to 90% RH, non-condensing |
| Ambient storage temperature | -20 to 75 °C |
| Power holding time | 2 ms min. |
| Power consumption | 13 W max. |
| Inrush current | 30 A max. (cold start) |
| Noise immunity | IEC 61000-4-4, 2 kV power supply line |
| Shock resistance | 147 m/s², three times each in X/Y/Z |
| Vibration resistance | 10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| High-speed counters | 4 inputs / 2 axes, 24 VDC |
| Pulse outputs | 2 outputs, 1 Hz to 100 kHz |
| PWM outputs | 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz |
Controls a small conveyor with precise start/stop, sensor counting, and pulse-based timing using the 24 VDC supply, 8 inputs, and high-speed counter support.
Provides deterministic control for part tracking and indexing in a compact footprint.
Manages interlocked sequence logic, actuators, and photoelectric feedback in a machine with limited I/O, leveraging 6 transistor outputs and battery-backed memory.
Solves space-constrained machine sequencing without requiring a larger modular PLC.
Drives basic pulse-output-based motion such as a feeder, escapement, or small stepper drive interface using the 2-channel pulse outputs and 100 kHz capability.
Enables basic positioning and feed control without a dedicated motion controller.
