24 VDC compact PLC CPU with 8 DC inputs, 6 NPN transistor outputs, USB, 5K-step memory, and expansion support.

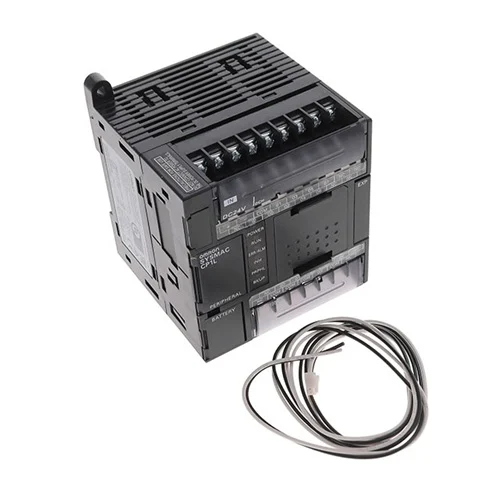

Compact CP1L-series programmable logic controller CPU unit with 24 VDC supply, 8 DC inputs, 6 NPN transistor outputs, and built-in USB communication. Omron lists 5K-step program memory and 10K words of data memory, plus real-time clock/calendar and battery backup. The unit supports expansion and option modules, making it suitable for compact machine control and small automation panels. Omron also lists the model as a built-in USB port type and notes it is a 14-point CPU unit with transistor sinking outputs.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Built-in I/O | 14 points |
| Input type | DC |
| Input count | 8 |
| Output type | Transistor (sinking/NPN) |
| Output count | 6 |
| Program memory | 5K steps |
| Data memory | 10K words |
| Communications | USB, 1 option port |
| Real-time clock/calendar | Yes |
| Battery backup | Yes |
| Total I/O capacity | 54 |
| Number of expansion I/O | 1 |
| Number of option modules | 1 |
| UL certification | Yes |
| CSA certification | Yes |
| CE marking | Yes |
A small packaging line can use the 24 VDC PLC CPU to sequence sensors, solenoids, and actuator outputs in a compact control cabinet.
Provides enough discrete I/O and transistor switching for fast machine sequencing without a larger controller.
The unit can control a short conveyor transfer cell with photoeyes, diverters, and interlocks using its built-in 14-point I/O and expansion capability.
Solves distributed control needs in a small footprint while allowing future expansion.
OEM builders can embed this CPU in compact equipment requiring local USB programming, battery-backed timekeeping, and low-voltage control architecture.
Reduces panel complexity for small standalone machines that still need maintainable logic, diagnostics, and clock-based functions.
