USD 185.16

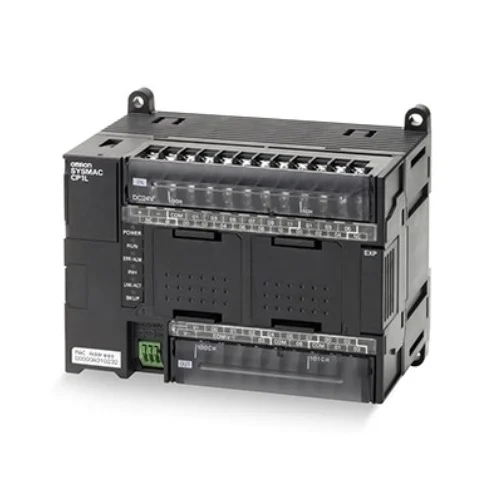

AC-powered compact PLC CPU with 8 digital inputs, 6 transistor sinking outputs, USB port, and DIN-rail mount.
AC-powered compact PLC CPU with 8 digital inputs, 6 transistor sinking outputs, USB port, and DIN-rail mount.
| Parameter | Value |
|---|---|
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in input terminals | 8 inputs |
| Built-in output terminals | 6 outputs |
| Output type | Transistor output (sinking) |
| Memory capacity | 5K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes (models with transistor outputs only) |
| Mounting type | DIN rail / chassis mount |
| Communications | USB, option cards available |
| Operating temperature | 0°C to 55°C |
| Weight | 360 g max. |
| Dimensions | 86 mm x 90 mm x 76 mm |
| Voltage endurance | 2,300 VAC for 1 min between external AC and GR terminals |
| Insulation resistance | 20 MΩ min. at 500 VDC between external AC terminals and GR terminals |
| Physical Weight (kg) | 0.36 |
| Dimensions L x W x H (cm) | 8.6 x 9 x 7.6 |
The 100 kHz pulse outputs and high-speed counters suit precise position or count-based indexing on compact conveyors and transfer stations.
Provides deterministic counting and pulse control in a small AC-powered PLC footprint.
The AC supply, USB port, and compact 14-point I/O make it well suited for replacing relay logic in small standalone machines and skids.
Simplifies legacy panel retrofit while preserving a low I/O count and direct AC powering.
Eight digital inputs and six sinking transistor outputs are appropriate for compact safety-interlock, sensor, and actuator coordination in packaged equipment.
Handles simple discrete control loops without requiring a larger PLC platform.
