Compact AC PLC CPU with 14 I/O, 6 relay outputs, USB programming, option-slot expansion, RTC, and battery backup.

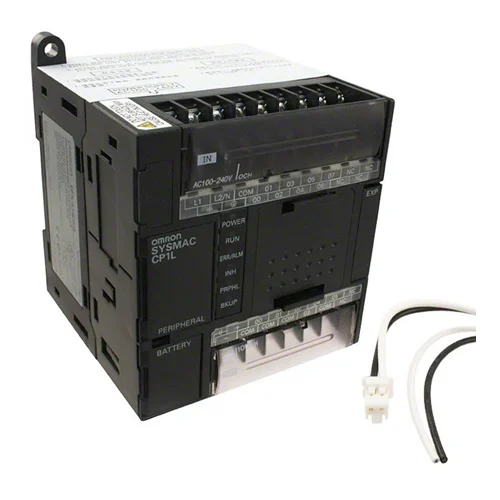

Compact CP1L series PLC CPU unit with AC power supply, 14 built-in I/O points, 8 DC inputs, 6 relay outputs, USB programming, one option slot, one expansion-unit slot, battery backup, and real-time clock/calendar. Manufacturer literature identifies it as a stored-program controller with cyclic scan and immediate refreshing, intended for modular machine control and small automation systems.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in I/O | 14 |
| Built-in inputs | 8 x 24 VDC inputs |
| Built-in outputs | 6 relay outputs |
| Relay output rating | 2 A |
| Total I/O capacity | 54 |
| Number of expansion I/O units | 1 |
| Number of option modules | 1 |
| Communications | USB, 1 option port |
| Real-time clock/calendar | Yes |
| Battery backup | Yes |
| Program capacity | 5K steps program + 10K words data memory |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% RH, non-condensing |
| Ambient storage temperature | -20 to 75°C |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV on power supply line |
| Shock resistance | JIS C60068-2-27, 147 m/s², three times each in X/Y/Z |
| Vibration resistance | JIS C60068-2-6, 10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Insulation resistance | 20 MΩ min. at 500 VDC between external AC terminals and GR terminals |
| Dielectric strength | 2,300 VAC for 1 min between external AC and GR terminals |
| Built-in inputs by model class | 12 inputs for L14 class |
| Built-in outputs by model class | 8 outputs for L14 class |
Suitable for a small production machine that needs 8 DC sensor inputs, 6 relay-controlled actuators, and PLC logic in a compact DIN-rail footprint with AC mains supply.
Eliminates the need for a larger PLC when only a modest I/O count and relay outputs are required.
The relay outputs and AC supply support direct replacement of hardwired relay logic in older equipment while preserving simple wiring and on-panel serviceability.
Replaces aging relay panels with programmable sequencing without redesigning power architecture.
One expansion I/O slot and one option port make it practical for a compact cell that may later add sensors, communications, or extra I/O without changing the base controller.
Provides a scalable controller platform for systems that need modest growth headroom.
