USD 168.12
Compact PLC CPU, 100–240 VAC supply, 6 DI, 4 SS outputs, USB, 32K words, DIN-rail mount, battery backup.

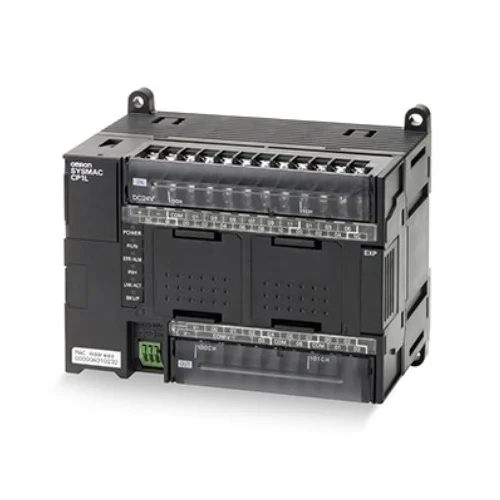

Compact CP1L CPU unit with 100 to 240 VAC supply, 6 digital inputs, 4 solid-state outputs, USB communications, 32K-word memory, battery backup, and DIN-rail/chassis mounting. Manufacturer documentation identifies the CP1L family as a high-performing programmable controller with expansion support and Omron’s CP-series CPU architecture.
| Parameter | Value |
|---|---|
| Power supply | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 30 VA max. (CP1L-L20/-L14/-L10[][]-A) |
| Input count | 6 digital inputs |
| Output count | 4 solid-state outputs |
| Expandable | 1 module max. |
| Communications | USB |
| Memory size | 32K words |
| Mounting type | Chassis mount, DIN rail |
| Operating temperature | 0°C to 55°C |
| Vibration resistance | Conforms to JIS C60068-2-6; CP1L-L/M: 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, 9.8 m/s² |
| Shock resistance | Conforms to JIS C60068-2-27; 147 m/s², three times each in X, Y, and Z directions |
| Ambient humidity | 10% to 90% (with no condensation) |
| Noise immunity | Conforms to IEC 61000-4-4; 2 kV (power supply line) |
| Ingress protection | Not specified in manufacturer/distributor sources |
| Weight | 299.82 g (DigiKey listed weight) |
| GTIN/EAN/UPC | Not explicitly verifiable from sources |
Appropriate for compact OEM machines that need a small PLC with 6 discrete inputs, 4 solid-state outputs, and DIN-rail mounting for direct panel integration.
Provides deterministic discrete control for start/stop logic, interlocks, and machine state sequencing in a tight control cabinet.
Fits short conveyor lines, indexing tables, and actuator stations where 100 to 240 VAC supply and compact I/O count simplify deployment.
Reduces wiring and panel complexity for basic material handling automation with modest I/O requirements.
Useful in retrofit projects where a compact replacement controller is needed with battery backup, USB access, and a single expansion slot.
Modernizes legacy relay logic panels while preserving small footprint and enabling easier program upload/download.
