DC-powered PLC CPU with Ethernet, 24 inputs, 16 sinking transistor outputs, 10K-step memory, 100 kHz counters, and 100 kHz pulse outputs.

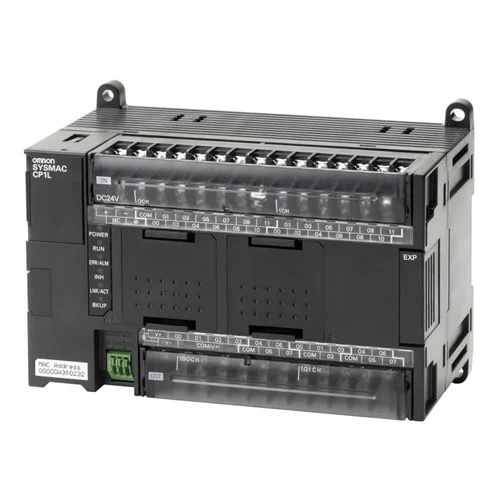

Compact Omron CP1L-EM series CPU unit with built-in Ethernet, 24 DC inputs, 16 transistor sinking outputs, 10K-step program memory, and high-speed counter/pulse-output capability. The DC-powered unit is intended for small-to-mid automation panels requiring embedded networking and fast I/O response. Official Omron documentation identifies this exact model as a CP1L-EM CPU with 40 built-in I/O points, transistor sinking outputs, and support for 100 kHz high-speed counters across 4 axes plus 100 kHz pulse outputs on transistor-output versions. Distributor listings confirm it as a PLC controller and identify the 24-in/16-out DC Ethernet configuration.
| Parameter | Value |
|---|---|
| Power supply | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Built-in inputs | 24 |
| Built-in outputs | 16 |
| Output method | Transistor output (sinking) |
| Program capacity | 10K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes (transistor-output models only) |
| Ambient operating temperature | 0 to 55°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Power consumption | 20 W max. |
| Power holding time | 10 ms min. |
| Shock resistance | Conforms to JIS C60068-2-27; 147 m/s² three times each in X, Y, and Z directions |
| Mounting | DIN track mounting |
| Terminal screw diameter | 4.5 mm dia. mounting holes (per outline drawing) |
| Weight | 675 g max. |
| Dimensions (H x W x D) | 90 x 140 x 85 mm |
The 100 kHz high-speed counters and 100 kHz pulse outputs make this CPU well suited to compact positioning systems, indexing tables, and small servo/stepper applications.
Provides fast position feedback and pulse train control in one compact Ethernet-enabled CPU.
With 24 inputs, 16 transistor outputs, and DC power, the unit fits compact conveyor, diverter, and reject-station panels that need fast switching and straightforward network integration.
Handles discrete machine logic with enough I/O density for compact material-handling cells.
The built-in Ethernet port and small form factor support OEM packaging, assembly, and test machines that need remote commissioning, monitoring, and a reduced panel footprint.
Combines Ethernet connectivity and compact footprint to reduce wiring and enable remote maintenance.
