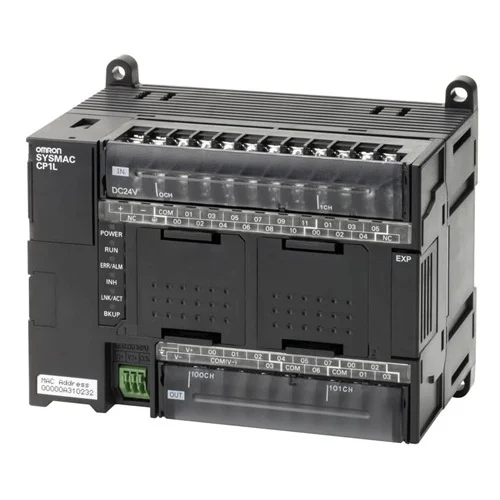

24 VDC PLC CPU with Ethernet, 18 inputs, 12 sourcing transistor outputs, 20K steps, 32K words, 100 kHz counters/pulse outputs.
Compact CP1L CPU unit with embedded Ethernet, 24 VDC supply, 18 digital inputs, 12 transistor outputs (sourcing), 20K-step program capacity, 32K-word data memory, 0.55 µs logic execution, and support for up to 3 expansion units. Designed for small to mid-size machine control requiring high-speed counting and pulse output capability.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Digital inputs | 18 |
| Input type | PNP/NPN |
| Digital outputs | 12 |
| Output type | Transistor, sourcing (PNP) |
| Program capacity | 20 K steps |
| Data memory capacity | 32 K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | Ethernet TCP/IP |
| Number of Ethernet ports | 1 |
| USB ports | 0 |
| RS-232 ports | 0 |
| RS-485 ports | 0 |
| Communication options | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function block programming | Supported |
| Battery-free memory backup | Supported |
| Real-time clock | Supported |
| Analogue option boards | Supported |
| Max. number of analogue I/O channels | 34 |
| Max. number of local I/O points | 150 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0 to 55 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 130 mm |
| Product depth (unpacked) | 85 mm |
| Product weight (unpacked) | 455 g |
Controls conveyor indexing, sensors, and actuators in a small packaging line using 24 VDC I/O, Ethernet networking, and fast 0.55 µs execution.
Provides deterministic machine sequencing without requiring a larger PLC platform.
Handles encoder feedback and pulse outputs for synchronized label placement, with 100 kHz encoder input and 100 kHz pulse output support.
Maintains registration accuracy between product motion and print/apply timing.
Supports up to 2 PTP axes and high-speed I/O for compact positioning systems, such as indexing tables, pick-and-place units, or simple motion stations.
Enables low-latency motion coordination in a compact controller footprint.
