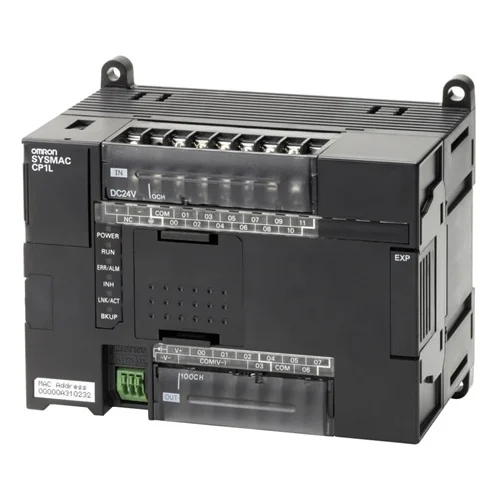

24 VDC compact PLC CPU with 12 inputs, 8 PNP outputs, Ethernet TCP/IP, 5K steps, 100 kHz pulse/encoder capability.
24 VDC compact PLC CPU with 12 inputs, 8 PNP outputs, Ethernet TCP/IP, 5K steps, 100 kHz pulse/encoder capability.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Supply voltage | 24 VDC |
| Digital inputs | 12 |
| Input type | PNP/NPN |
| Digital outputs | 8 |
| Output type | PNP |
| Program capacity | 5K steps |
| Data memory capacity | 10K words |
| Logic execution time | 0.55 µs |
| Communication port(s) | Ethernet TCP/IP |
| Number of Ethernet ports | 1 |
| Number of USB ports | 0 |
| Number of RS-232 ports | 0 |
| Number of RS-485 ports | 0 |
| Communication options | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels | 4 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| FINS communications | UDP/IP and TCP/IP |
| Mounting type | DIN rail / chassis mount |
| Weight | 380 g max. |
| Width | 86 mm |
| Height | 85 mm |
| Depth | 76 mm |
| Physical Weight (kg) | 0.38 |
| Dimensions L x W x H (cm) | 7.6 x 8.6 x 8.5 |
The 24 VDC supply, 8 PNP outputs, and 100 kHz pulse output capability suit small machine sections that need fast discrete actuation and positioning.
Provides a compact controller for synchronized conveyors, stops, and indexing actuators without requiring a larger PLC platform.
With 4 encoder input channels and 100 kHz input frequency, the CPU can read rapid shaft, wheel, or sensor pulses for counting and reject logic.
Solves missed-pulse issues in fast counting applications on compact inspection or sorting machines.
Built-in Ethernet TCP/IP and FINS communications enable integration with HMI, SCADA, or upstream line controllers while maintaining local I/O control.
Eliminates the need for an external communication module in a small networked packaging cell.
