24VDC PLC CPU with 12 inputs, 8 transistor outputs, 20K-step memory, 1MHz counters, and 1MHz pulse outputs.

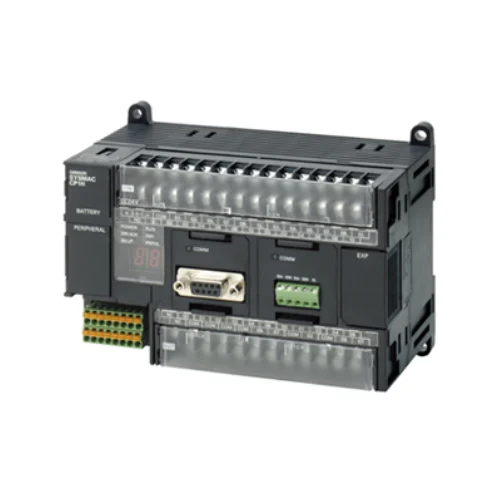

Compact CP1H CPU unit with DC supply, 12 built-in digital inputs, 8 transistor outputs, and dedicated pulse I/O architecture for motion-oriented machine control. The official Omron catalog lists 20K-step memory, high-speed counters up to 1 MHz on 2 axes, pulse outputs up to 1 MHz on 2 axes, and expandable architecture supporting option boards and expansion units. DigiKey lists the device as a 24 VDC chassis/DIN-rail PLC with battery backup and USB communications.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Built-in inputs | 12 digital inputs |
| Built-in outputs | 8 transistor outputs (sinking) |
| High-speed counters | 1 MHz, 2 axes; 100 kHz, 2 axes |
| Pulse outputs | 1 MHz, 2 axes; 100 kHz, 2 axes |
| Memory capacity | 20K steps |
| Communications | USB; option boards available |
| Mounting type | Chassis mount, DIN rail |
| Operating temperature | 0°C to 55°C |
| Current consumption | 590 g max. weight listed for CP1H-@@@-D DC power-supply CPU units |
| Weight | 590 g max. |
| Dimensions | 31 × 90 × 65 mm (W × H × D) |
| Ingress protection | Not specified in official catalog |
The 1 MHz pulse outputs and 1 MHz high-speed counters make this suitable for precise stepper/servo indexing on compact machines.
Provides deterministic pulse control for accurate position indexing without requiring a larger motion controller.
The 12 digital inputs, 8 transistor outputs, and DIN-rail CPU format fit compact packaging lines with photoeyes, solenoids, and interlocks.
Consolidates discrete machine sequencing into a small footprint with direct 24 VDC integration.
The dedicated pulse I/O and expansion capability suit retrofits of legacy two-axis equipment such as feeders, labelers, or simple gantries.
Replaces obsolete relay logic or basic controllers with a compact CPU that can drive two synchronized axes.
