USD 775.36
24 VDC PLC CPU with 40 I/O, 4 analog inputs, 2 analog outputs, 16 NPN transistor outputs, USB, and high-speed pulse control.

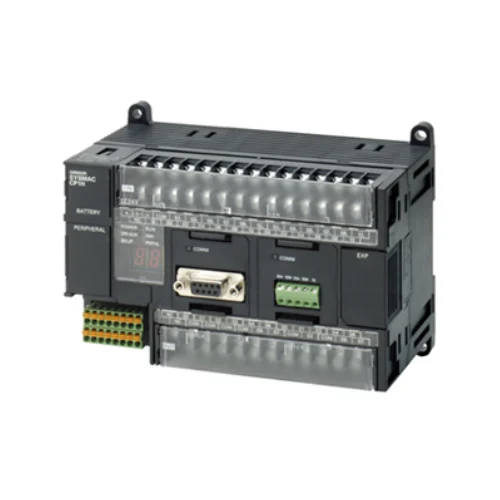

Omron CP1H-XA40DT-D is a CP1H-series PLC CPU unit with 24 VDC supply, 24 DC inputs, 16 NPN transistor outputs, built-in analog I/O, and 20K-step program memory. Official Omron documentation identifies it as a DC-powered CPU unit with 40 built-in I/O points, 4 analog inputs, 2 analog outputs, 100 kHz high-speed counters, 100 kHz pulse outputs, USB communications, two option ports, real-time clock, and battery backup. It is intended for compact machine control where integrated analog handling and high-speed positioning/pulse control are required.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Built-in I/O | 40 |
| Inputs | 24 DC inputs |
| Outputs | 16 NPN transistor outputs |
| Built-in analog inputs | 4 |
| Built-in analog outputs | 2 |
| Program memory | 20K steps |
| Data memory | 32K words |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 4 axes |
| Communications | USB, 2 option ports |
| Real-time clock/calendar | Yes |
| Battery backup | Yes |
| Total I/O capacity | 320 |
Suitable for a small packaging line that needs discrete machine sequencing plus analog setpoint handling and pulse output for coordinated actuator motion.
Combines discrete I/O, analog control, and high-speed pulse generation in one CPU, reducing external modules.
Well matched to a process skid that requires analog sensor input, analog output to a drive or valve positioner, and reliable 24 VDC control logic.
Integrates analog process control with digital interlocks in a compact controller.
Fits a compact indexing table or feed station needing 100 kHz pulse control, fast counting, and local I/O without a separate motion controller.
Provides built-in high-speed counters and pulse outputs for simple motion tasks.
