AC-powered compact PLC CPU with 24 DC inputs, 16 relay outputs, 4 analog inputs, 2 analog outputs, and 7-module expansion.

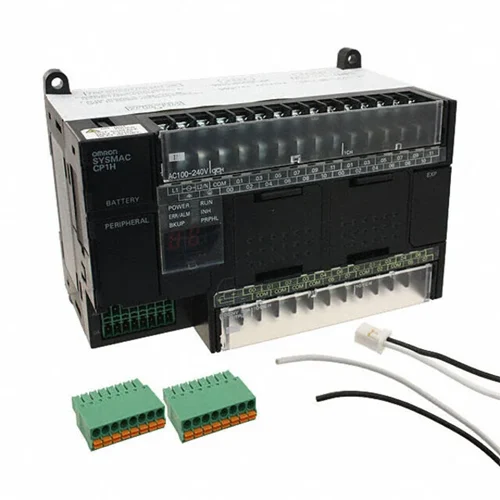

CP1H-XA40DR-A is an Omron CP1H-series CPU unit with AC supply, 24 DC inputs, 16 relay outputs, built-in analog I/O, USB peripheral port, and expansion support for modular machine control. Official Omron documentation identifies the unit as a CP1H-XA CPU with 20K-step program memory, 32K words of data memory, 4 built-in analog inputs, 2 built-in analog outputs, and support for up to 7 expansion modules. The unit is intended for DIN-rail industrial automation applications requiring compact PLC control with mixed discrete and analog I/O.
| Parameter | Value |
|---|---|
| Supply voltage | 100–240 VAC |
| Built-in inputs | 24 (24 VDC) |
| Built-in outputs | 16 relay outputs |
| Built-in analog inputs | 4 |
| Built-in analog outputs | 2 |
| Program memory | 20K steps |
| Data memory | 32K words |
| Expansion modules max | 7 |
| Communications | USB, option cards available |
| Real-time clock | Yes |
| Battery backup | Yes |
| Operating temperature | 0°C to 55°C |
| Weight | 740 g max (AC power supply CPU unit family spec) |
| Dimensions | Approx. 110 mm x 90 mm x 85 mm (family drawing in datasheet) |
| Mounting | DIN rail / chassis mount |
Ideal for small production machines that need discrete sequencing plus analog setpoint control from the same CPU.
Eliminates the need for a separate analog controller while handling interlocks, timers, and machine states.
Fits compact packaging stations requiring many 24 VDC sensors, actuator relays, and moderate expansion for conveyors or reject mechanisms.
Handles multiple sensors and output devices in a small DIN-rail footprint with modular growth.
Suitable for small pumps, valves, and basic process loops where 4 analog inputs and 2 analog outputs are enough for monitoring and control.
Combines process signal handling and logic control in one controller without a larger PLC platform.
