USD 530.33
40-point compact PLC CPU, 24 VDC supply, sourcing transistor outputs, 20K-step memory, USB and option-board expandability.

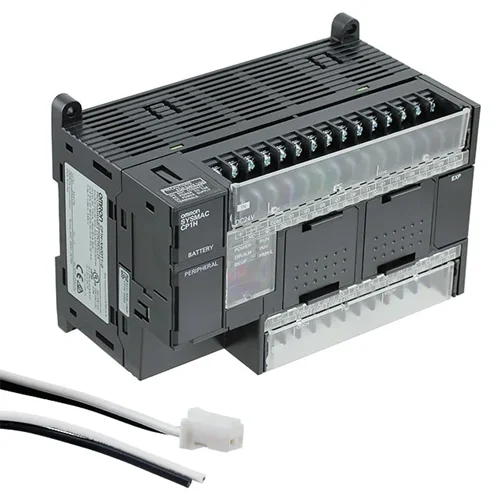

Compact Omron CP1H basic-model PLC CPU unit with 40 built-in I/O points, 24 VDC supply, sourcing transistor outputs, and 20K-step program memory. Official Omron documentation identifies it as a DC-powered CP1H-X CPU unit with 24 inputs and 16 outputs, 0.3 A transistor outputs, 1 analog input, USB peripheral port, and two option ports. The CP1H family supports high-speed counters and pulse outputs up to 100 kHz on transistor-output models, plus expansion and option modules for communications and I/O extension.
| Parameter | Value |
|---|---|
| Built-in I/O | 40 |
| Supply voltage | 24 VDC |
| Input type | DC |
| Output type | Transistor (sourcing) |
| Built-in inputs | 24 |
| Built-in outputs | 16 |
| Output current rating | 0.3 A |
| Program memory | 20K steps |
| Data memory | 32K words |
| High-speed counters | 100 kHz, 4 axes (CP1H-X CPU units) |
| Pulse outputs | 100 kHz, 4 axes (transistor-output models) |
| Communications | USB, 2 option ports |
| Real-time clock/calendar | Yes |
| Battery backup | Yes |
| Standards/certifications | UL, CSA, CE |
| Weight | 590 g max. for CP1H-@@@-D DC power supply models |
| Dimensions | 110 mm x 90 mm x 85 mm (datasheet dimension diagram for CP1H CPU units) |
| Mounting holes | Four, 4.5 mm dia. |
The 24 VDC CPU with 40 built-in I/O points and sourcing transistor outputs fits small packaging lines that need direct sensor and actuator interfacing without a separate remote I/O rack.
Reduces panel space and wiring complexity while providing enough discrete I/O for conveyors, cylinders, photoeyes, and solenoids.
The transistor-output CP1H-X platform supports high-speed counter and pulse-output functions on transistor models, making it suitable for precise indexing, counting, and synchronization tasks.
Provides deterministic pulse and count handling for feeder timing, part counting, and simple motion coordination.
A DC-powered CPU with USB programming, option ports, and battery-backed memory is a strong fit for replacing older compact PLCs in existing equipment where cabinet footprint and downtime are critical.
Enables modernization of legacy machines while preserving compact cabinet layout and simplifying service access.
