24 VDC compact PLC CPU; 40 built-in I/O, 16 NPN transistor outputs, 20K steps, 32K words, USB, 100 kHz high-speed I/O.

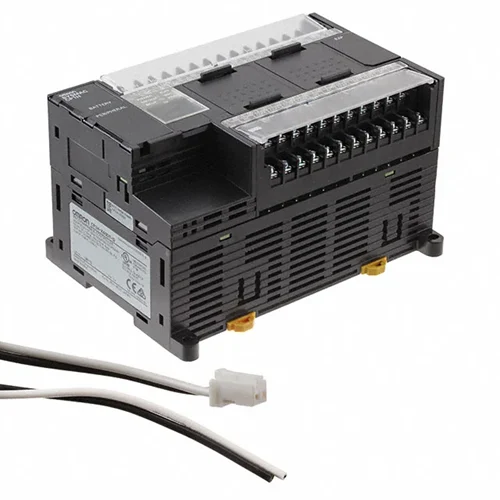

Compact CP1H basic CPU unit with 24 VDC supply, 40 built-in I/O points, 24 DC inputs, 16 NPN transistor outputs, 20K-step program capacity, and 32K words data memory. The unit supports high-speed counters and pulse outputs up to 100 kHz, plus USB and option-board communication expansion.
| Parameter | Value |
|---|---|
| Supply voltage | 24 VDC |
| Input type | DC |
| Output type | Transistor (NPN sinking) |
| Built-in I/O | 40 |
| Digital inputs | 24 |
| Digital outputs | 16 |
| Program capacity | 20K steps |
| Data memory | 32K words |
| High-speed counters | 100 kHz |
| Pulse outputs | 100 kHz |
| Number of expansion units | 7 |
| Number of option modules | 2 |
| Communication port(s) | USB |
| Display | 2-digit 7-segment |
| Real-time clock | Yes |
| Battery backup | Yes |
| Operating temperature range | 0-55 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 150 mm |
| Product depth (unpacked) | 85 mm |
| Product weight (unpacked) | 600 g |
The 24 VDC supply, 40 built-in I/O points, and 16 transistor outputs suit compact sequenced machine control with fast discrete switching.
Consolidates sensors and actuators into a small CPU without requiring a larger controller.
100 kHz high-speed counters and pulse outputs support compact motion or indexing tasks where deterministic pulse generation is needed.
Provides fast count/pulse handling for encoders and stepper-driven mechanisms.
The small 90 × 150 × 85 mm body and USB programming interface make it suitable for replacing legacy relay logic in space-limited panels.
Enables modern PLC control in cramped control cabinets without major panel redesign.
